CRL Open Cell Backer Rod is a soft, round, and easily compressible open cell polyurethane foam. Open Cell Backer Rod is not adversely affected by dynamic joint movement, and its inherent flexibility applies itself to joint variations very easily. It is ideal for use in situations where joint damage has occurred. It eliminates potential sealant failures due to out gassing that occurs when the "skin" of closed cell backer rod is punctured. The black color helps to disguise the backer rod in certain joint applications. CRL Open Cell Backer Rod can be used in temperatures from -65 to 400 F(-54 to 204 C). It is highly recommended for use with high performance sealants such as silicones and urethanes. CRL Open Cell Backer Rod should be used only in vertical and horizontal wall joints. It is not suitable for horizontal traffic joint surfaces like pavement joints.
Proper size selection of CRL Open Cell Backer Rod is important as it controls the depth of the sealant bead. It must be oversized (50%) to fit tightly into the joint, and function as a bond breaker to prevent bottom-side adhesion of the sealant.
New joints must be cleaned thoroughly, removing any concrete form-release agents, curing compound residue, or any other foreign materials. To ensure a good sealant bond, joints must be clean and dry when the sealant is installed. If old joints are being repaired, all old sealant or filler must be removed. Wire brushing and air blasting are very effective in removing old caulk residues. If an air compressor is used, it must be equipped with traps for the removal of oil and moisture.
After measuring the joint size and choosing the applicable backer rod, install the backer rod at the depth recommended by the sealant manufacturer. The depth that the rod is inserted into the joint should allow the sealant to form a "hourglass" shape. This is the optimum shape factor for prolonging the service life of the sealant. The backer rod must be installed with a blunt tool or roller. The T607CU605 CRL Backer Rod Insert Tool Set, is designed specifically for the smooth installation of backer rod. Packaged on easy to unroll spools and shipped in boxes not bags.
THE PRODUCT CAN COME IN DIFFERENT SHADES OF BLACK, BUT THIS WILL NOT AFFECT THE OVERALL PERFOMANCE OF THE PRODUCT.
Product Warning:
Not suitable for horizontal traffic joints. Use only in vertical wall joints. Do not use with hot applied sealants. Any questions regarding sealant compatibility should be confirmed with the sealant manufacturer.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

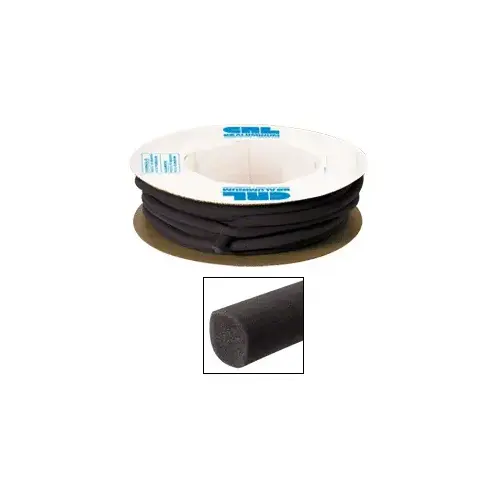

CRL B0CBR78C Black 7/8" Open Cell Backer Rod - 100 Foot Roll
Item #: B0CBR78C by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Controls Depth of Sealant and Acts as a Bond Breaker
- Open Cell, No Skin, Non-Gassing Rod is Compatible With All Cold-Applied Sealants
- Soft, Compresses Easily
Color
Black
Diameter of Rod
7/8 in (22.2 mm)
Feet per Roll
100 ft (30.5 m)
Roll Length
100' (30.5 m)
Rod Diameter
7/8" (22 mm)
Diameter
7/8
Finish
Black
Type
Open Cell
Finish/Color
Black
Roll Length (Feet)
100
Product Overview
CRL Open Cell Backer Rod is a soft, round, and easily compressible open cell polyurethane foam. Open Cell Backer Rod is not adversely affected by dynamic joint movement, and its inherent flexibility applies itself to joint variations very easily. It is ideal for use in situations where joint damage has occurred. It eliminates potential sealant failures due to out gassing that occurs when the "skin" of closed cell backer rod is punctured. The black color helps to disguise the backer rod in certain joint applications. CRL Open Cell Backer Rod can be used in temperatures from -65 to 400 F(-54 to 204 C). It is highly recommended for use with high performance sealants such as silicones and urethanes. CRL Open Cell Backer Rod should be used only in vertical and horizontal wall joints. It is not suitable for horizontal traffic joint surfaces like pavement joints.
Proper size selection of CRL Open Cell Backer Rod is important as it controls the depth of the sealant bead. It must be oversized (50%) to fit tightly into the joint, and function as a bond breaker to prevent bottom-side adhesion of the sealant.
New joints must be cleaned thoroughly, removing any concrete form-release agents, curing compound residue, or any other foreign materials. To ensure a good sealant bond, joints must be clean and dry when the sealant is installed. If old joints are being repaired, all old sealant or filler must be removed. Wire brushing and air blasting are very effective in removing old caulk residues. If an air compressor is used, it must be equipped with traps for the removal of oil and moisture.
After measuring the joint size and choosing the applicable backer rod, install the backer rod at the depth recommended by the sealant manufacturer. The depth that the rod is inserted into the joint should allow the sealant to form a "hourglass" shape. This is the optimum shape factor for prolonging the service life of the sealant. The backer rod must be installed with a blunt tool or roller. The T607CU605 CRL Backer Rod Insert Tool Set, is designed specifically for the smooth installation of backer rod. Packaged on easy to unroll spools and shipped in boxes not bags.
THE PRODUCT CAN COME IN DIFFERENT SHADES OF BLACK, BUT THIS WILL NOT AFFECT THE OVERALL PERFOMANCE OF THE PRODUCT.
Product Warning:
Not suitable for horizontal traffic joints. Use only in vertical wall joints. Do not use with hot applied sealants. Any questions regarding sealant compatibility should be confirmed with the sealant manufacturer.
