The CRL PR80 Series of Multi-Size Adjustable Spring Power Surface Mounted Door Closers are the perfect closers to replace your single size surface closer inventory. This compact closer matches the common 9-1/16" x 3/4" (230 x 19 mm) hole template, making it ideal for both new and retrofit applications. The closers adjust in a range from Size 1 through 5 to accommodate doors from 24" through 54" (610 mm to 1.37 m) and up to 264 lbs. (120 kg). A Barrier-Free (low opening resistance) model is available to comply with A.D.A. opening force requirements. Closing and latching speed controls are independently adjustable, and the adjustable backcheck feature helps prevent damage to the closer, door, and adjacent surface should the door be violently swung open due to wind or heavy pedestrian traffic.
All PR80 Closers are UL listed and warranted for ten years. Parallel Arm Brackets and mounting hardware are included with each closer permitting universal installation for regular, top jamb or parallel arm applications. The closer is supplied with a standard plastic slim style cover. Optional accessories, such as Drop Plates and Hold Open Arms, are available for special installations.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

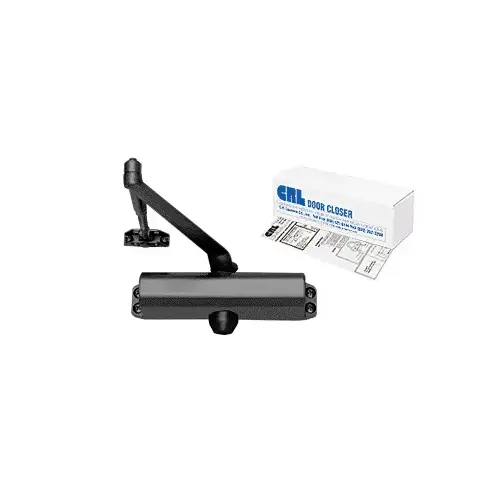

CRL PR80BLK Black Adjustable Spring Power Size 2 to 5 Surface Mount Door Closer
Item #: PR80BLK by CR Laurence
Brand: CRL
11 reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Multi-Size Adjustable Spring Power Closers Ranging in Size From 1 to 5
- Barrier-Free Models to Meet A.D.A. Barrier-Free Requirements
- Applicable for Doors Ranging From 24" to 54" Wide and 33 to 264 Lbs.
- UL Listed
Closer Body Length
9-3/4" (247 mm)
Vertical Mounting Holes
3/4" (19 mm) Center-to-Center
Horizontal Mounting Holes
9-1/16" (230 mm) Center-to-Center
Shipping Weight
7 lb (3.18kg)
Finish
Black
Closer Type
Surface Mount
UL Listed
Yes
Horizontal Mounting Holes (Center To Center)
9-1/16
Includes
Parallel Arm Brackets,Mounting Hardware And Instructions
Spring Size
2 To 5
Closer Action
Adjustable
Body Length
9-3/4
Finish/Color
Black
Certification
A.D.A. Barrier-Free Requirements
Vertical Mounting Holes (Center To Center)
3/4"
Vertical Mounting Holes Center To Center
3/4 in. (19.1 mm)
Product Overview
The CRL PR80 Series of Multi-Size Adjustable Spring Power Surface Mounted Door Closers are the perfect closers to replace your single size surface closer inventory. This compact closer matches the common 9-1/16" x 3/4" (230 x 19 mm) hole template, making it ideal for both new and retrofit applications. The closers adjust in a range from Size 1 through 5 to accommodate doors from 24" through 54" (610 mm to 1.37 m) and up to 264 lbs. (120 kg). A Barrier-Free (low opening resistance) model is available to comply with A.D.A. opening force requirements. Closing and latching speed controls are independently adjustable, and the adjustable backcheck feature helps prevent damage to the closer, door, and adjacent surface should the door be violently swung open due to wind or heavy pedestrian traffic.
All PR80 Closers are UL listed and warranted for ten years. Parallel Arm Brackets and mounting hardware are included with each closer permitting universal installation for regular, top jamb or parallel arm applications. The closer is supplied with a standard plastic slim style cover. Optional accessories, such as Drop Plates and Hold Open Arms, are available for special installations.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
