Black Bronze AMR Series Patch Lock, High Density Cast Body, 6-7/16" Width, 2" Height, Black Bronze Anodized Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

CRL AMR205DU Black Bronze AMR Series Patch Lock, High Density Cast Body, 6-7/16" Width, 2" Height, Black Bronze Anodized Finish

Item #: AMR205DU by CR Laurence

Brand: CRL

See reviewsSee reviews
See reviews summary
In Stock

$103.95

/each
SAVE UP TO 10.40
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1146 units available

Finish: Black Bronze Anodized

QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Constructed with a high density cast body and finished in black bronze anodized for use in door hardware systems.

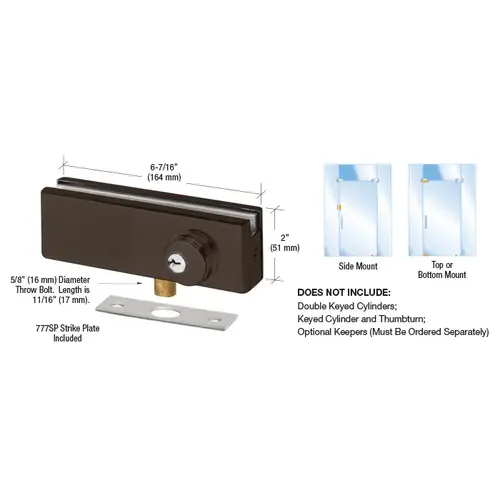

  • Measures 6-7/16" in width and 2" in height, with a 5/8" diameter lock bolt and 11/16" bolt length.
  • Compatible with 3/8" and 1/2" glass thicknesses, including gaskets for secure mounting on glass panels.
  • Designed for versatile installation on the top, bottom, or vertical edge of doors in commercial and residential settings.
  • Requires glass fabrication including a 3/4" diameter hole and specific notch or cutout depending on the mounting position.
  • Supports double door applications when a bottom patch lock is installed on the inactive leaf to secure the pair of doors.
  • Includes installation template and instructions; cylinders are not included and must be ordered separately.

Lock Bolt Diameter

5/8" (16 mm)

Bolt Length

11/16" (17.5 mm)

Finish

Black Bronze Anodized

Height

2

Width

6-7/16

Glazing Thickness

3/8, 1/2

Finish/Color

Black Bronze Anodized

Product Overview
The Black Bronze AMR Series Patch Lock is a locking mechanism designed for commercial and residential door applications. This patch lock features a high density cast body and is suitable for mounting on the top, bottom, or vertical edge of a door. It is compatible with 3/8" and 1/2" glass thicknesses, utilizing included gaskets for proper fit. The lock bolt has a diameter of 5/8" and a bolt length of 11/16". For installation, the unit measures 6-7/16" in width and 2" in height. Glass fabrication is required for mounting, specifically a 3/4" diameter hole and a corner notch for top or bottom mounts, or a 3/4" diameter hole and a U-cutout for side mounts. This lock can be secured to a jamb using the supplied keeper or to a glass panel using an optional sidelite mount keeper. For double door installations, a bottom patch lock is required on the inactive leaf. Please note that cylinders are not included and must be ordered separately. The package includes a template and instructions for installation. The finish is a black bronze anodized coating.
