CRL SR10SBL34SL Black Powder Coat 10" x 120" Length Square Sidelite Rail for 5/8" or 3/4" Glass

  • Reversible Extruded Saddle to Match 1/4" or 3/4" (6 or 19 mm) Door Clearances
  • Provides Even Sightline With Our Door Rails
  • Vinyl Provided to Use with 1/2" (12 mm) Glass; Vinyl for 3/8" (10 mm) Glass Ordered Separately
  • Ready-to-Ship Models From CRL Inventory
  • Use Monolithic Tempered Glass
  • Matching Door Rails Available for an Even Sightline
See Full Product Description
SALE

$735.41 /stock length

Qty

In stock
Special Order

Usually ships in 1-2 weeks*

SALE

Qty

In stock Special Order

Usually ships in 1-2 weeks*

SALE

Similar Products


Description

  • Reversible Extruded Saddle to Match 1/4" or 3/4" (6 or 19 mm) Door Clearances
  • Provides Even Sightline With Our Door Rails
  • Vinyl Provided to Use with 1/2" (12 mm) Glass; Vinyl for 3/8" (10 mm) Glass Ordered Separately
  • Ready-to-Ship Models From CRL Inventory
  • Use Monolithic Tempered Glass
  • Matching Door Rails Available for an Even Sightline

  • Product Description
  • Technical Details 9
  • Product Reviews 1
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Height

10" (254 mm)

Length

120" (3.05 m)

Minimum Order

1 Stock Length

Finish

Black

  • Reversible Extruded Saddle to Match 1/4" or 3/4" (6 or 19 mm) Door Clearances
  • Provides Even Sightline With Our Door Rails
  • Vinyl Provided to Use with 1/2" (12 mm) Glass; Vinyl for 3/8" (10 mm) Glass Ordered Separately
  • Ready-to-Ship Models From CRL Inventory
  • Use Monolithic Tempered Glass
  • Matching Door Rails Available for an Even Sightline

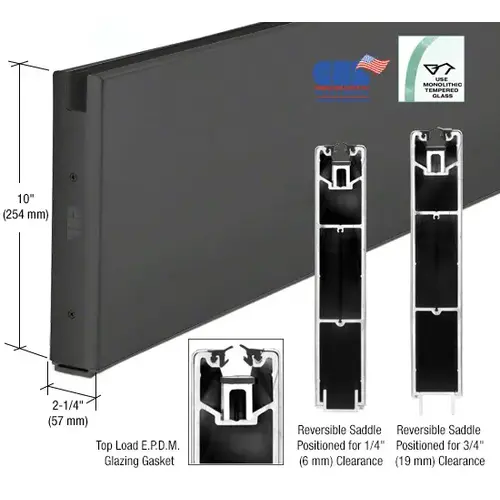

The CRL 10" (254 mm) Square Sidelite Rail is commonly used in office and storefront applications to secure fixed glass panels. Since the profile matches our Door Rails, these Sidelite Rails can be used top and bottom for a matching look, or with a variety of smaller configuration U-Channels. Glass is installed easily with the 'lift and drop' method using our 4" (102 mm) Aluminum and Neoprene Setting Blocks. Glass is secured with a Top Load EPDM Roll-in Glazing Gasket that eliminates the messy application of silicone sealant.
ORDERING INFORMATION:
• Sidelite Rails on this page come with vinyl to glaze 3/4" (19 mm) glass. If using 5/8" (16 mm) glass, GG38 Series Vinyl must be ordered separately.
• All models are available in 120" (3.05 m) lengths. Selected finishes are also offered in 240" (6.10 m) lengths.
• Custom lengths and finishes are available.
• SREC10S Series End Caps (for 3/4" Glass) and Cat. No. UCSB4 Setting Blocks must be ordered separately. Important Notes: Shown with End Caps which must be ordered separately. Stainless Steel Cladded Aluminum and cannot be cut with a standard chop saw or abrasive blade. These will cause the Cladding to heat up and burn the finish. This material must be cut with a cold saw to prevent damage to the finish. For further information please contact Technical Sales.
