The CRL 10" (254 mm) Square Sidelite Rail is commonly used in office and storefront applications to secure fixed glass panels. Since the profile matches our Door Rails, these Sidelite Rails can be used top and bottom for a matching look, or with a variety of smaller configuration U-Channels. Glass is installed easily with the 'lift and drop' method using our 4" (102 mm) Aluminum and Neoprene Setting Blocks. Glass is secured with a Top Load EPDM Roll-in Glazing Gasket that eliminates the messy application of silicone sealant.
NOTE: Actual Product Height : 10" (254 mm)
ORDERING INFORMATION:
Sidelite Rails on this page come with vinyl to glaze 1/2" (12 mm) glass. If using 3/8" (10 mm) glass, GG38 Series Vinyl must be ordered separately.
All models are available in 120" (3.05 m) lengths. Selected finishes are also offered in 240" (6.10 m) lengths.
Custom lengths and finishes are also available.
SREC10S Series End Caps and Cat. No. UCSB4 Setting Blocks must be ordered separately.
Product Warning:

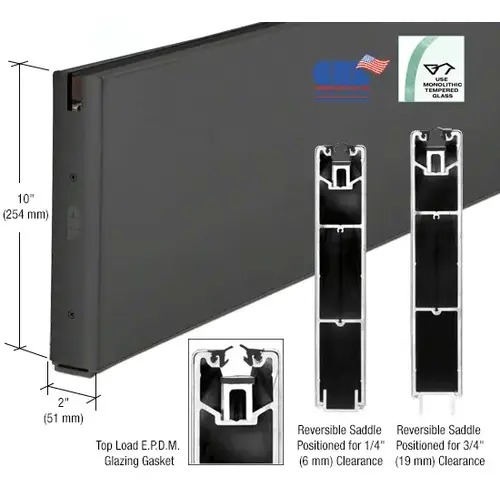

Shown with End Caps which must be ordered separately. Stainless Steel Cladded Aluminum and cannot be cut with a standard chop saw or abrasive blade. These will cause the Cladding to heat up and burn the finish. This material must be cut with a cold saw to prevent damage to the finish. For further information please contact Technical Sales.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL Black Powder Coat 10" x 240" Length Square Sidelite Rail 240" Stock Length
Item #: SR10SBL3812240 by CR Laurence
Brand: CRL
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Dry Glaze Push-In Top Load Glazing Gasket for 1/2" (12 mm) Glass Included, 3/8" (10 mm) Glazing Gasket Sold Separately
- Reversible Extruded Saddle to Match 1/4" or 3/4" (6 or 19 mm) Door Clearances
- Provides Even Sightline With Our Door Rails
- Vinyl Provided to Use with 1/2" (12 mm) Glass; Vinyl for 3/8" (10 mm) Glass Ordered Separately
- Two Finishes to Match CRL Door Rails
- Use Monolithic Tempered Glass
- Matching Door Rails Available for an Even Sightline
Length
240" (6.10 m)
Shipping Weight
40 lb (18.14kg)
Finish
Gloss Black
Width
1
Glazing Thickness
3/8, 1/2
Finish/Color
Gloss Black
Floor Mount Saddle Included
FMS2BL
Height
10
Material
Aluminum
Profile
Square
Nominal Height
4 in. (102 mm)
Product Overview
The CRL 10" (254 mm) Square Sidelite Rail is commonly used in office and storefront applications to secure fixed glass panels. Since the profile matches our Door Rails, these Sidelite Rails can be used top and bottom for a matching look, or with a variety of smaller configuration U-Channels. Glass is installed easily with the 'lift and drop' method using our 4" (102 mm) Aluminum and Neoprene Setting Blocks. Glass is secured with a Top Load EPDM Roll-in Glazing Gasket that eliminates the messy application of silicone sealant.
NOTE: Actual Product Height : 10" (254 mm)
ORDERING INFORMATION:
Sidelite Rails on this page come with vinyl to glaze 1/2" (12 mm) glass. If using 3/8" (10 mm) glass, GG38 Series Vinyl must be ordered separately.
All models are available in 120" (3.05 m) lengths. Selected finishes are also offered in 240" (6.10 m) lengths.
Custom lengths and finishes are also available.
SREC10S Series End Caps and Cat. No. UCSB4 Setting Blocks must be ordered separately.
Product Warning:
Shown with End Caps which must be ordered separately. Stainless Steel Cladded Aluminum and cannot be cut with a standard chop saw or abrasive blade. These will cause the Cladding to heat up and burn the finish. This material must be cut with a cold saw to prevent damage to the finish. For further information please contact Technical Sales.
