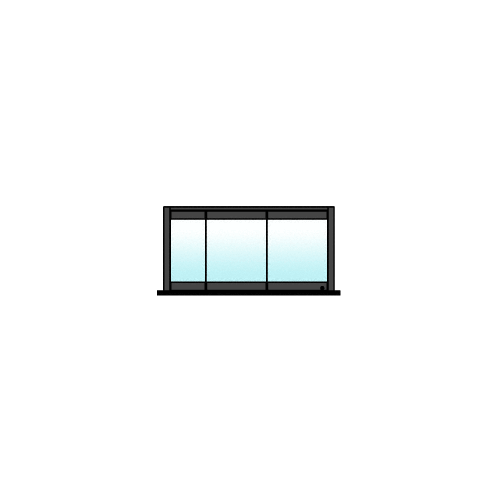

CRL 0TC3BL Black Powder Coated 3-Panel Overhead Track Half Leaf Bi-Fold Door Configuration
Item #: 0TC3BL by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use Monolithic Tempered Glass
- Panels Hung From Mid-Point, Maximizing Panel Width
- Provides a Flush Bottom Surface
- With 4" (102 mm) Square DR4S Series Door Rails
Panel
3-Panel
Type
Half Leaf Bi-Fold Door Configuration
Finish
Black
Glazing Thickness
3/8, 1/2
Profile
Square
Maximum panel width
41
Finish/Color
Gloss Black
Door Bottom Rail (3/8 Inch Glass)
DR4SBL38C
Door Top Rail (1/2 Inch Glass)
DR4SBL12C
Door Bottom Rail (1/2 Inch Glass)
DR4SBL12C
Door Top Rail (3/8 Inch Glass)
DR4SBL38C
Configuration
Single Track Half Leaf 3 Panels

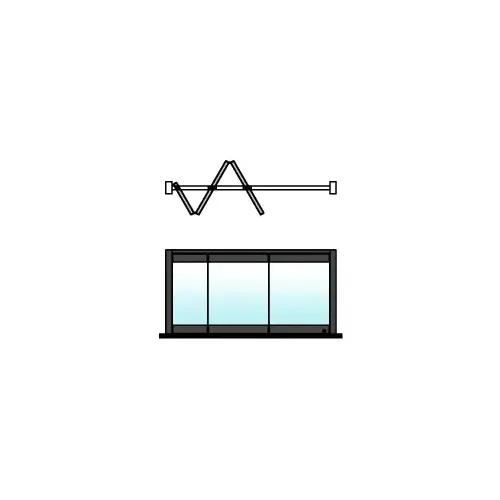

CRL Overhead Track Half Panel Bi-Fold Door Systems are available in four configurations, with a maximum of three panels on each side of the opening. The end panels act like normal center pivoting doors and connect to the first hanging panel using special hinged end caps. The hanging panels are joined in the same manner, and are hung from a single Cat. No. 0TCA Carriage Assembly at the midpoint of the panel's width.
Use the Cat. No. 0TBR Series Guide Channel supplied with each order to prevent the panels from dragging during operation. Maximum panel weight not to exceed 170 lbs. (77 kg). Maximum panel width is 41" (1.04 m). Minimum panel width is 15" (381 mm).
NOTE: Available with 4" (102 mm) square rails, and by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact DK Hardware Sales Department.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
