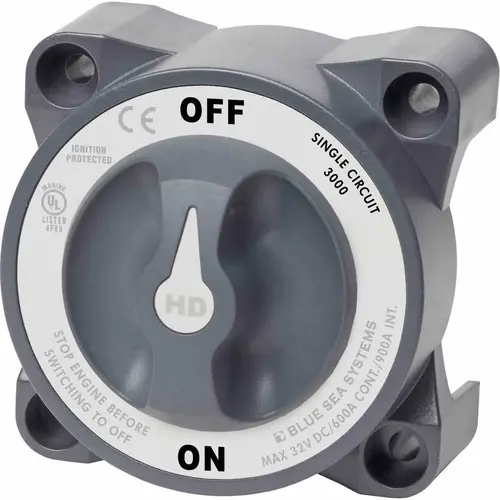

BLUE SEA SYSTEMS 3000 On/Off, 2 Positions, 600 Continuous Amps, 2000 Inrush Amps, 1200 Cranking Amps Gray
Item #: 3000 by Blue Sea Systems
Brand: BLUE SEA SYSTEMS
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Compact design makes installation in tight places easy
- Multiple mounting options; can be installed on the surface or rear of the panel
- Ignition protected and can be mounted in the engine room of gasoline powered boats
- One Piece Copper studs are 7/8"long and accept multiple cables
- Tactile textures on face let operate the switch in low or no light
- Compatible hole pattern and face diameter with Perko and Guest low amperage battery switches
- Included snap-out isolator covers and labels included
- Lifetime warranty
- Switch Positions: 2-4
- Battery Combine: No
- Continuous Rating: 600A
- Intermittent Rating (5 min): 900A
- Cranking Rating (30Sec): 1700A
- Battery Inputs: 1
- Weight:1.3lb
- Switch Positions: 4
- Battery Combine: Yes
- Alternator Field Disconnect: No
- Maximum Voltage: 32V
- Continuous Rating: 500A
- Intermittent Rating (5 min): 700A
- Cranking Rating (30Sec): 1600A
- Battery Inputs: 2
- Cable Size to meet ratings: 4/0 AWG
- Mounting Holes: 1/4"
- Terminal Stud size: 1/2"
- Dimensions: 3.85 "L x 3.85"W x 3.097" D
- Weight:1.25lb
Voltage
12 Volts/24 Volts DC
Dimensions
3.85 "L x 3.85"W x 3.097" D
Type
On/Off Switches
Warranty
FIVE YEARS
Color
Gray
Amperage
600 Amps
Cold Cranking Amps
2750 Amps
ISO Approved
UL Listed. Meets UL 1500 , SAE J1171 , CE
Product Overview
A compact battery switch capable of handling up to 600 Amps Blue Sea Systems heavy duty battery switches have a compact footprint, but carry incredible electrical loads. Built on the same chassis as the e-Series switches they can be easily installed in a variety of locations. The Heavy-Duty series are ignition protected and can be located in the engine rooms of gasoline powered boats. A make before break feature allows switching between banks without interrupting current flow. The tactile texture of the switch face and knob allow operation by feel in low or no light situations. One piece tin-plated copper terminal studs are long enough to accept multiple cables and will accept the torque required to create a secure connection that minimizes resistance. The Heavy Duty series switches are designed to carry high loads and fit in small places.
