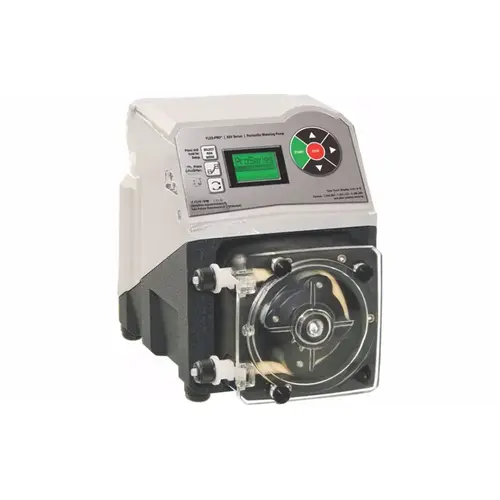

Blue White Industries A1N20A-7T Flexflo High Pressure Metering Pump With Analog Timer 115v 60hz
Item #: A1N20A-7T by BLUE WHITE INDUSTRIES
In Stock $810.02 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Peristaltic pump design does not have valves that can clog requiring maintenance
- Adjustable 60 sec repeating interval timer
- 3-60 sec adjustable on time per 60 sec cycle
- Built-in Tube Failure Detection system (TFD)
- Senses chemical in the pump head, shuts off the pump and activates an NPN open collector output
- Compatible with blue-white output flow verification sensor system
- Durable housing of chemical resistant Valox (PBT) thermoplastic
- Neoprene tube
- Analog timer 60 sec with 100% duty cycle
- Natural polypropylene suction strainer
- Natural polyethylene discharge tubing
- Self priming - even against maximum line pressure. By-pass valves are not required. Cannot vapor lock or lose prime
- Clear PVC pump head cover
- Compression tube nut connection
- 5000 centipose viscosity
- Outputs to 250 ml/min (95.1 gpd)
- Output pressures to 100 psi
- Output volume is not effected by changes in back pressure
- Patented pump tube design installs easily and stays centered on the rollers without manual adjustment
- Two pump tubes supplied with each pump and extra tubing is not required
- Easy to use dial knob output control
- 20:1 turn down ratio
Dimension
6-1/4 Inch H x 10 Inch W x 9-1/4 Inch D
Application
For water treatment and conditioning, proportional chemical injection, wastewater treatment, biocide feed, rural water systems, cooling tower and boiler treatment, fertilizer and nutrient injection, pool chlorination and pH control
Type
High Pressure
Shipping Dimensions
13.50x9.50x13.00
Brand
Blue White Industries
Department
FEEDERS | CHLORINATORS | SANTIZERS
AmperageRating
1.87 A
CordType
3 Conductor, SJTW-A, NEMA 5/15
FlowRate
76.1 gpd
Forusewith
Chemical Feeders
FrequencyRating
60 Hz
HousingMaterial
Polypropylene
Item
Peristaltic Metering Pump with Analog Timer
MaximumSuctionLift
30 ft Water at 0 psi
MotorRPM
45
OperatingTemperature
130 deg F
PressureRating
50 psi
StandardsApprovals
ETL Listed, CE, NSF Certified
SubBrand
Flexflo®
SuctionSize
7/16 Inch OD
VoltageRating
115 V
RPM
45
P65 Warning
The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Maximum Suction Lift
30 foot
Temperature Rating Max
130 degrees Fahrenheit
Each Product Weight
10.95 pound
Pressure Rating Max
50 pounds per square inch
Temperature Rating Min
130 degrees Fahrenheit
Minimum Sell Quantity
1
Frequency Rating (Hz)
60
Pressure Rating Min
50 pounds per square inch
Suction Size Outer Diameter
0.4375 inch
Flow Rate Min
76.1 gal/day
Standards Approvals
NSF Certified
Flow Rate Max
76.1 gal/day
Blue White Industries A1N20A-7T Flexflo(R) A-100N High Pressure Peristaltic Metering Pump with Analog Timer For Chemical Feeders; 7/16 Inch OD, 76.1 gpd, Polypropylene, 115 V-60 Hz, 50 psi
