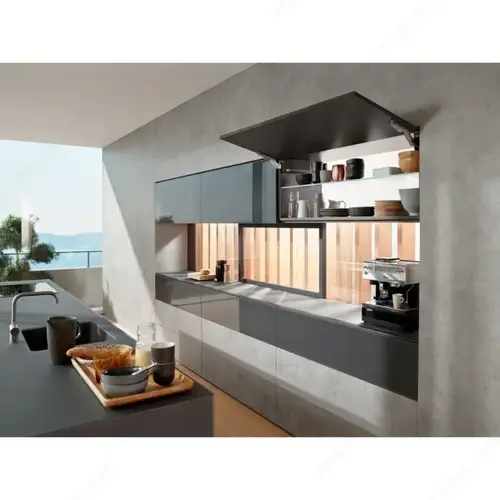

Blum-USA 22K2300T AVENTOS HK top Mechanism with TIP-ON
Item #: 22K2300T by Blum-USA
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Material
Steel
Load Capacity
Max. 39.7 lb
System Type
Arm
Door Height
8 1/16 to 23 5/8 in
Side
Both
Door Length
Max. 70 7/8 in
Lf Power Factor
420-1610
Minimum internal depth of the enclosure
7 3/8 in
Mechanism Strength
Heavy Weight
Screw/Nail
Positioning Template
Finish
Grey
Product range
AVENTOS top
Type of opening
Lift-Up Opening
Hinge Opening Angle
+107°
Motion Technology
Touch Release / Soft-Close
Fixing With
Wood Screws Ø4 x 35 mm (included)
Specific range(s)
AVENTOS HK top
Product Overview
Linear design
AVENTOS HK top blends discreetly into top wall cabinets, thus placing even greater focus on the design of the furniture. The size of AVENTOS HK top makes it ideal for small cabinets. This compact yet powerful fitting is even suitable for large wall cabinets. The opening angle stop is already integrated with AVENTOS HK top. The opening distance of the front is infinitely variable and can therefore be set exactly as required. The functionality of AVENTOS HK top is even greater when combined with motion technology.
Advantages And Benefits
An innovative mechanism prevents the lever arm from folding out unintentionally. This helps ensure safe installation.
Adjust the lift mechanism precisely to the weight of the front and the stay lift remains exactly where you want it to, meaning it is always easy to reach.
Mechanical opening; a single touch on the front releases the lift system so that you can open it upwards with ease. To close, simply press shut.
Two different lift mechanisms are available: with positioning template or with pre-mounted system screws (reversible).
AVENTOS HK top offers many opportunities for creating a space that's even more unique.
Application
For door thicknesses up to 30 mm
Distinctive style in cabinet interior
Unrestricted range of motion
Ample storage space
Enhanced ease of use
Included Product(S)
HK top with pre-mounted system Euro screws are reversible (four drill holes in the 32 mm system are required).
HK top with the positioning template are not reversible (no pre-drilling necessary).
Important Information
Please consult the supplier's documents in order to properly calculate the Power factor (LF) required for your project. Always round up to the highest number for your selection.
Formula:
(LF) = Cabinet height (KH) mm x Front weight including double handle weight (kg)
Disclaimer
Max. front weight 18 kg for two lift mechanisms.
Opening angle:
LF of 420 to 2800 107
LF of 1730 to 9000 100
