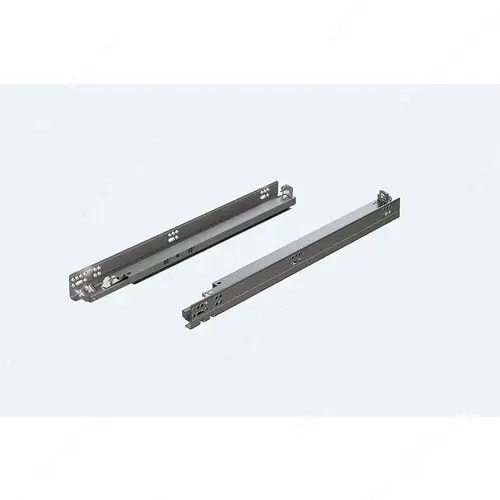

Blum-USA 563H5330B TANDEM plus 563H Full Extension Concealed Undermount Slide with Blumotion for Face Frame Cabinet Pair Zinc
Item #: 563H5330B by Blum-USA
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Length
21 in
Load Capacity
100 lb
BLUM Technology
Blumotion
Motion Technology
Soft-Close
Slide Extension
Full Extension
Slide Mounted
Undermounted
Weight Capacity
90 lb
Cabinet Type
Face-frame, Frameless
extension
Full Extension
Material Type
Steel
Bearing Type
Roller Bearing
Color/Finish
Zinc
Product Type
Undermount Drawer Slide
Manufacturer Series
563H Tandem Plus Blumotion
Maximum Drawer Thickness
5/8 in
Side Clearance (in)
3/16 in
Minimum Drawer Thickness
1/2 in
Drawer Length (in)
21 in
For Drawer Thickness
1/2-5/8 in
Product Overview
New This product provides four-dimensional adjustment:
- Side-to-side, 1.5 mm (front and rear)
- Height, 3 mm
- Tilt, 5 mm
- Depth, with optional locking device, 3/32 in (2.5 mm)
- Depth, with elongated holes, plus or minus 11/16 in (4.5 mm)
Maximum drawer thickness of 5/8 in (16 mm)
Advantages And Benefits
- Integrated BLUMOTION soft-close.
- Wide range of drawer lengths from 9" to 30", in 3" increments.
- Bottom mount holes for mounting to a fixed shelf or a flush bottom cabinet.
- Available for standard and heavy-duty applications.
- Excellent stability and less sag even when drawer is fully loaded.
- Bearing block for consistent reveal even in fully loaded drawer.
- Rear notch increases to 35 mm to accomodate new side-to-side adjustment.
- Same drawer box construction as the curent TANDEM runners.
- Same drilling pattern as current 562/568 TANDEM plus BLUMOTION concealed runners.
- Side-to-side, 1.5 mm (front and rear)
- Height, 3 mm
- Tilt, 5 mm
- Depth, with optional locking device, 3/32 in (2.5 mm)
- Depth, with elongated holes, plus or minus 11/16 in (4.5 mm)
Maximum drawer thickness of 5/8 in (16 mm)
