Features
- Constructed from steel with a nickel finish for use in indoor cabinet and furniture applications.
- Features a 100 degree opening angle and a free swing closing mechanism for standard door operation.
- Designed for frameless cabinet types with an overlay door position, suitable for 5/8" thick doors.
- Requires a 1-3/8" milling diameter and a 13/32" milling depth for proper installation on the cabinet.
- Utilizes a screw-on fixing type for attachment to the cabinet carcass and furniture frame.
- Includes a short glide path for efficient assembly and three-dimensional adjustment for door alignment.
- Equipped with an integrated safety catch to hold the door in place during the installation process.
Material
Steel
Door Thickness
5/8 in
Hinge Type
Modul
Cabinet Type
Frameless
Door position
Overlay
Cabinet Thickness
Min. 5/8 in
Hinge Opening Angle
+100°
Closing Mechanism
Free Swing
Fixing Type
Screw-On
Milling Depth
13/32 in
Milling Diameter
1 3/8 in
Use Type
Standard Door
Packaging Format
Per unit
Packaging Specifications
Not Applicable
Screw/Nail
Not Included
Finish
Nickel
Brand
Blum
Product Overview

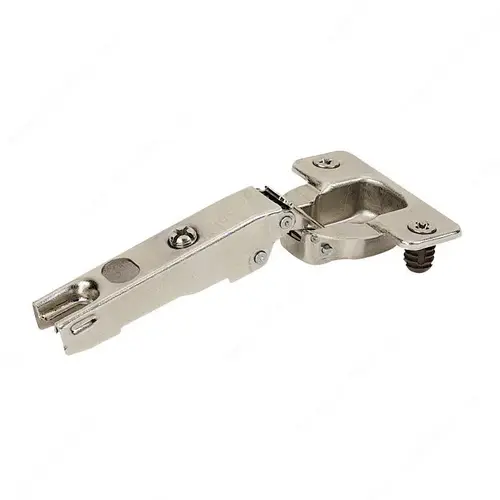

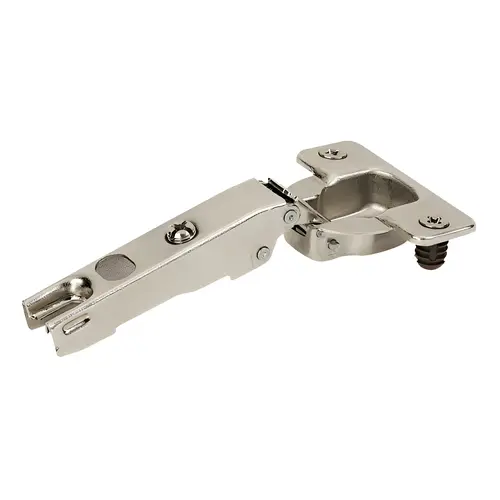

The MODUL Hinge-100 degree is a cabinet hinge designed for the installation of a door on a piece of furniture or a cabinet. Constructed from steel with a nickel finish, this hinge is intended for indoor use in frameless cabinet applications. It features a 100 degree opening angle and a free swing closing mechanism. The hinge is designed for an overlay door position and requires a 1-3/8" milling diameter with a 13/32" milling depth. It is suitable for doors with a 5/8" thickness and cabinets with a minimum 5/8" thickness. The hinge utilizes a screw-on fixing type for installation. It incorporates a short glide path for assembly and allows for three-dimensional door adjustment to achieve a balanced alignment. An integrated safety catch is included to keep the door in place during installation. This hinge is sold per unit and does not include screws or nails.
