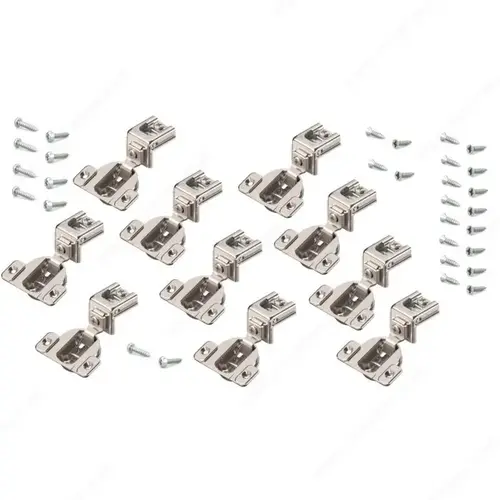

Blum-USA AP39C35520180U COMPACT 39C Hinge 110 degree
Item #: AP39C35520180U by Blum-USA
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Nickel
Mounting Type
Wraparound Type Mounting
Material
Steel
Door Thickness
Max. 3/4 in
Hinge Type
Compact
Cabinet Type
Face Frame
Overlay
1 1/4 in
Door position
Full Overlay
Cabinet Thickness
Max. 3/4 in
Hinge Opening Angle
+110°
Fixing Type
Screw-On
Milling Depth
1/2 in
Milling Diameter
1 3/8 in
Required Frame Width
3/4 in
Use Type
Standard Door
Packaging Format
Bag of 10 units
Screw/Nail
Included
Product Overview
COMPACT hinges are concealed hinges for face frame cabinets. They are easy to use and are adjustable in side, height, and depth dimensions. They also work with small and large overlays. COMPACT hinges are a great option for a wide variety of face frame applications.
Advantages And Benefits
- 110 degree opening angle
- One piece assembly
- Wraparound mount
- 1/2" cup depth
- 1/8" height adjustment
- 1/16" side adjustment
- +3/32", -1/32" cam depth adjustment
- Steel, nickel-plated
Important Information
The best way to clean your Blum fittings is as follows:
- Use a soft, lint-free cloth, a chamois leather or a sponge
- Ensure that the material you use to wipe the furniture with is just damp, not wet
- Always wipe the furniture again afterwards with a dry cloth
- If possible, use cleaning products intended specifically for materials such as leather, stainless steel etc.; otherwise, use only clean water
- Wipe off dirt as soon as it appears
AVOID THE FOLLOWING:
- using steam cleaners
- using cleaning products, such as abrasive cleaning powder, steel wool and scourers, as well as cleaning agents, such as acetone, chlorine, cellulose thinner and solutions whose names start with tri or tetra
- storing open cleaning products, baking powder, dishwasher products or table salt, for example. Fumes can cause corrosion on all metal surfaces.
Application
- For the installation of a door on a piece of furniture and/or a cabinet.
- Blum hinges are not made of stainless steel, therefore it is not recommended to use them for outdoor applications.
Advantages And Benefits
- 110 degree opening angle
- One piece assembly
- Wraparound mount
- 1/2" cup depth
- 1/8" height adjustment
- 1/16" side adjustment
- +3/32", -1/32" cam depth adjustment
- Steel, nickel-plated
Important Information
The best way to clean your Blum fittings is as follows:
- Use a soft, lint-free cloth, a chamois leather or a sponge
- Ensure that the material you use to wipe the furniture with is just damp, not wet
- Always wipe the furniture again afterwards with a dry cloth
- If possible, use cleaning products intended specifically for materials such as leather, stainless steel etc.; otherwise, use only clean water
- Wipe off dirt as soon as it appears
AVOID THE FOLLOWING:
- using steam cleaners
- using cleaning products, such as abrasive cleaning powder, steel wool and scourers, as well as cleaning agents, such as acetone, chlorine, cellulose thinner and solutions whose names start with tri or tetra
- storing open cleaning products, baking powder, dishwasher products or table salt, for example. Fumes can cause corrosion on all metal surfaces.
Application
- For the installation of a door on a piece of furniture and/or a cabinet.
- Blum hinges are not made of stainless steel, therefore it is not recommended to use them for outdoor applications.
