Features
- Constructed from steel with a nickel finish, this hinge is designed for use in cabinet and furniture hardware systems for indoor applications.
- Features a 100 degree opening angle, providing a wide range of motion suitable for standard door applications in frameless cabinet setups.
- Designed for overlay door positions, this hinge is compatible with doors having a 5/8" thickness and cabinets with a minimum 5/8" thickness.
- Utilizes a screw-on fixing type with a 1-3/8" milling diameter and a 13/32" milling depth, ensuring a precise fit for cabinet door installations.
- Includes a short glide path for efficient assembly and three-dimensional door adjustment capabilities for achieving a balanced door play pattern.
- Supplied in a pack of 10 units, this hinge includes an integrated safety catch and unhooking safety device to keep the door in place during mounting.
- Includes mounting screws for installation, providing a complete set of components for cabinet hardware assembly in residential or office furniture.
Material
Steel
Door Thickness
5/8 in
Hinge Type
Modul
Cabinet Type
Frameless
Door position
Overlay
Cabinet Thickness
Min. 5/8 in
Hinge Opening Angle
+100°
Fixing Type
Screw-On
Milling Depth
13/32 in
Milling Diameter
1 3/8 in
Use Type
Standard Door
Packaging Format
Bag of 10 units
Packaging Specifications
UPC Code
Screw/Nail
Included
Finish
Nickel
Brand
Blum
Product Overview

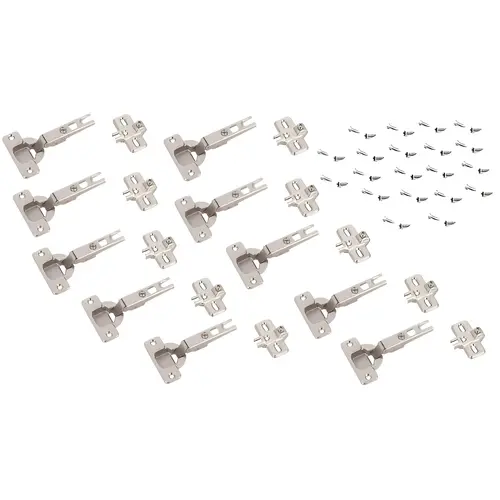

The MODUL Hinge is a cabinet hinge designed for frameless cabinet applications. Constructed from steel with a nickel finish, this hinge is suitable for standard door installations. It features a 100 degree opening angle and is designed for an overlay door position. The hinge requires a 1-3/8" milling diameter and a 13/32" milling depth for installation. It is compatible with doors having a 5/8" thickness and cabinets with a minimum 5/8" thickness. The hinge utilizes a screw-on fixing type and includes the necessary screws for mounting. The design incorporates a short glide path for assembly and three-dimensional door adjustment for alignment. This hinge also features an integrated safety catch that keeps the door in place during installation and an unhooking safety device for added functionality. This product is supplied in a pack of 10 units. For maintenance, clean the fittings with a soft, lint-free cloth or sponge using only clean water, ensuring the material is damp rather than wet, and always wipe dry afterwards.
