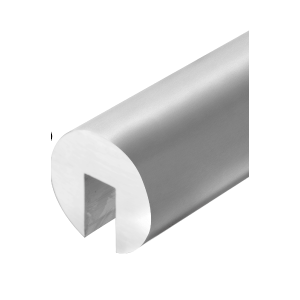

CRL Blumcraft 338SA Satin Anodized 338 Series 2-1/2" Diameter Aluminum Cap Rail 120" Stock Length
Item #: 338SA by Blumcraft
Item Discontinued! See reviews See
reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Extruded Heavy-Duty Solid Aluminum Construction
- For 1/2" (12 mm) Glass
- Ready-to-Install
- Sold in 120" (3.05 m) Stock Lengths or Custom Fabricated to Size
- Stainless Steel Adapter Strips Sold Separately
- Two Architectural Finishes, Plus Mill Aluminum Available from Stock
Length
120
Grade
6063-T5
"W" Width
3/4" (19 mm)
Type
Blumcraft 337 and 338 Series
Width
3/4" (19 mm)
D Depth
7/8" (22.2 mm)
Use Adapter Strip No.
ST307
Use Splice Pin No.
22A58
Depth
7/8" (22.2 mm)
Brand
Blumcraft
"D" Depth
7/8" (22 mm)
Finish
Satin Anodized
Diameter
2-1/2"
Material
6063-T5 Aluminum
Glazing Thickness
1/2, 5/8, 9/16
Finish/Color
Satin Anodized
Glass Pocket Width (Inches)
3/4
Top of Rail to Top of Glass Pocket
7/8
Glazing Insert
ST307
CRL Blumcraft®'s top quality American made extruded Cap Rails are produced from 6063-T5 aluminum and are offered in two architectural finishes, plus mill aluminum. Cap Rails are sold in stock lengths or can be custom fabricated to size. The use of stainless steel Adapter Strips, Very High Bond Tape, and Splice Pins are required during the installation process.
When using CRL Blumcraft®'s 337 and 338 Series Cap Rails, it is important to install the stainless steel Adapter Strips onto the glass edge with Very High Bond Cladding Tape before installing your Cap Rail.
NOTE: Each Cap Rail comes complete with pre-drilled holes 24" (610 mm) on center with set screws along one side of the Cap Rail for proper attachment to the Adapter Strips.
.
