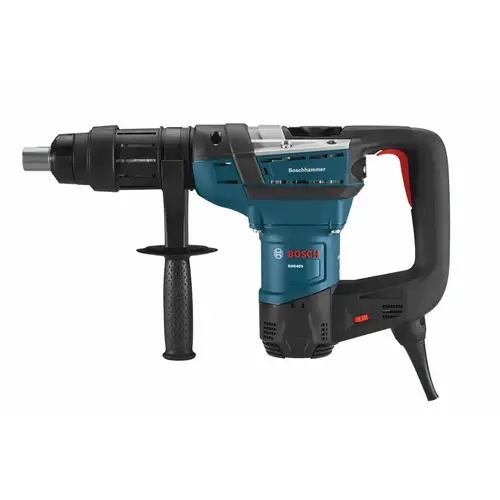

Bosch RH540S Spline Combination Rotary Hammers, 1 9/16 in Drive, 360 degree Auxiliary Handle
Item #: RH540S by Bosch
UPC #: 000346456158
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Bare Tool
Shipping Dimensions
24.75x6.00x16.50
Department
TOOLS
Returnable
Yes
Weight
15 lb
Height
10.5"
Defective Code
B
Maximum Hole Diameter in Concrete
1-9/16"
No Load BPM
1,500-2,900
Width
4"
Impact Energy
6.1 Ft./Lbs. EPTA
Cord Length
8 ft.
chuck size
5/8"
Maximum Hole Diameter in Concrete-Core Bit
4"
Length
19"
Case Included
Yes
Variable Speed
Yes
Product Type
Corded Combination Hammer Drill
Material
Metal/Plastic
Optimal Concrete Capacity Range
1/2" - 1-3/8"
Maximum Speed
340 rpm
AMPS
12 Amps
Maximum Hole Diameter in Concrete-Thru Hole Bit
2-1/2"
Each Weight
25.070 LB
Certifications
CSA Listed
Velocity
X
Volt
120V
Hazardous Material
No
Maximum RPM
2900
Tool Weight
15 lb
Type
Combination Rotary Hammer
Power Source
Electric
Handle Type
360° Auxiliary Handle
Control Type
Forward/Reverse Switch
Nominal Voltage
120 V
Nom. Height
10.5
Nom. Length
19
Cycle Rate [Max]
2,900 blows/min
Impact [Max]
6.1 ft/lbs
Speed [Max]
340 rpm
Cycle Rate [Min]
1,500 blows/min
Speed [Min]
170 rpm
Amps [Nom]
12 A
Drive Size [Nom]
1 9/16 in
Cutting Cap. 2
1 9/16 in (concrete)
Product Overview
Spline bit system accommodates all accessories with spline or 3/4 In
round hex shanks
Combination dual mode selector knob allows the tool to be switched between rotary hammer mode or hammer only mode
Integral clutch disengages torque transmission if the bit gets into a bind situation
Vario-LockTM positioning feature rotates and locks chisel into 12 different positions to optimize working angle
360 degree Auxiliary handle provides a wide range of movement along with operator comfort.
round hex shanks
Combination dual mode selector knob allows the tool to be switched between rotary hammer mode or hammer only mode
Integral clutch disengages torque transmission if the bit gets into a bind situation
Vario-LockTM positioning feature rotates and locks chisel into 12 different positions to optimize working angle
360 degree Auxiliary handle provides a wide range of movement along with operator comfort.
