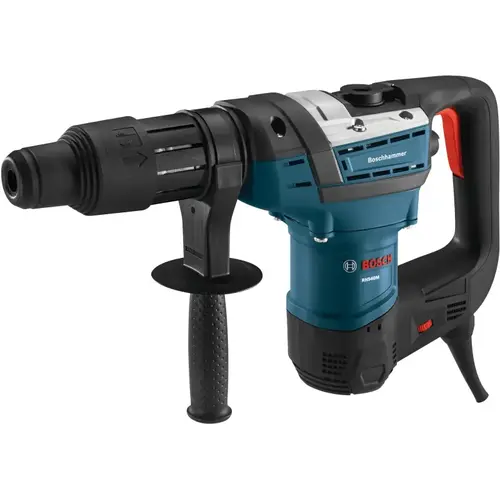

Bosch RH540M SDS-max Combination Hammer, 12 A, Keyless Chuck, 3/4 in Chuck, 1500 to 2900 bpm
Item #: RH540M by Bosch
UPC #: 000346456127
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Bare Tool
- 6.1 ft-lb of impact energy, up to 20% more than other combo rotary hammers
- SDS-max® bit system for tool-free bit changes
- Vario-Lock mechanism allows 12 positions for best chisel angle
- Combination dual mode selector knob rotary hammer mode or hammer-only mode
- Service minder brushes
- Innovative service modules
Tools Product Type
Power Tool
Hammer Drills & Rotary Hammers Type
Rotary Hammer
Included
Case Included
Standard Color Family
Blue
Amperage
12
Power Tool Product Type
Drills & Drivers
Product Width (in.)
4
Certifications and Listings
CSA Certified
Product Height (in.)
10.5
Cordless/ Corded
Corded
Blows Per Minute
1500 to 2900 bpm
Product Depth (in.)
19
Cord Length (ft.)
8
Warranty
Limited 1 Year
Drill/ Driver Type
Rotary Drill
Manufacturer Warranty
Limited 1 Year
Pack Size
1
Maximum Speed (rpm)
340 RPM
UNSPSC
27112703
Height
10.5"
Voltage
120V
AMPS
12 Amps
Material
Metal/Plastic
Length
19"
Width
4"
Weight
15.2 lb
Cord Length
8 ft
Certifications
CSA Listed
Case Included
Yes
Variable Speed
Yes
Defective Code
B
Each Weight
25.150 LB
Hazardous Material
No
Impact Energy
6.1 ft-lb
Maximum Hole Diameter in Concrete
1-9/16"
Maximum Hole Diameter in Concrete-Core Bit
4"
Maximum Hole Diameter in Concrete-Thru Hole Bit
2-1/2"
Maximum Speed
340 rpm
No Load BPM
1,500-2,900
Optimal Concrete Capacity Range
1/2" - 1-3/8"
Returnable
Yes
Velocity
X
chuck size
3/4"
Product Type
Corded Combination Hammer Drill
Maximum RPM
2900
Trade Name
SDS-max
Handle Type
D-Handle
Amp Rating
12 A
Nomenclature
RH540M HAMMER RTRY 1-9/16IN
Speed Rating
170 to 340 rpm
Sub Brand
SDS-max
Tool Weight
15.2 lb
Type
Combination Rotary Hammer
Power Source
Electric
Control Type
Forward/Reverse Switch
Nominal Voltage
120 V
Nom. Height
10 1/2 in
Nom. Length
19 in
Cycle Rate [Max]
2,900 blows/min
Impact [Max]
6.1 ft/lbs
Speed [Max]
340 rpm
Cycle Rate [Min]
1,500 blows/min
Speed [Min]
170 rpm
Amps [Nom]
12 A
Drive Size [Nom]
1 9/16 in
Cutting Cap. 2
1 9/16 in (concrete)
MADE IN THE USA
No
Package Quantity
1
UL Listed
No
Includes
Combination Hammer, Auxiliary Handle, Carrying Case
AbilityOne
No
ADA Compliant
No
Assembled Product Height
10.5 in.
Maximum Torque
6.1 Ft/Lb
Housing Material
High-Density Plastic, Metal
Assembled Product Width
4 in.
Assembled Product Weight
15.2 Lb
GSA Approved
No
TAA/BAA Compliant
Yes
Product Overview
HAMMER ROTARY COMBO 1-9/16IN
Specifications:
Specifications:
Includes: Auxiliary Handle Carrying Case
The Bosch RH540M 1-9/16 in SDS-max combination hammer is a combo rotary hammer and hammer-only tool designed for concrete contractors and professional remodelers who need a powerful and versatile tool. It delivers 6.1 ft-lb of impact energy while weighing in at only 15.2 lb. The motor is rated at 170 to 340 rpm in rotary mode and 1200 to 2750 bpm in hammer mode, which will easily reduce concrete to dust. Its SDS-max bit system allows tool-free and one-handed bit changes. The vario-lock mechanism lets users angle the chisel into 12 different positions to optimize the working angle. The hammer has a dual mode selector knob and service minder brushes, which clearly indicate when preventive maintenance is required.
