Brass 1" Glass-to-Glass Out-Swing Set-Screw Hinge - pack of 2

Roll over image to zoom in

SALE

CRL EH190 Brass 1" Glass-to-Glass Out-Swing Set-Screw Hinge - pack of 2

Item #: EH190 by CR Laurence

See reviewsSee reviews
In Stock

$15.96

/package
SAVE UP TO 1.60

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

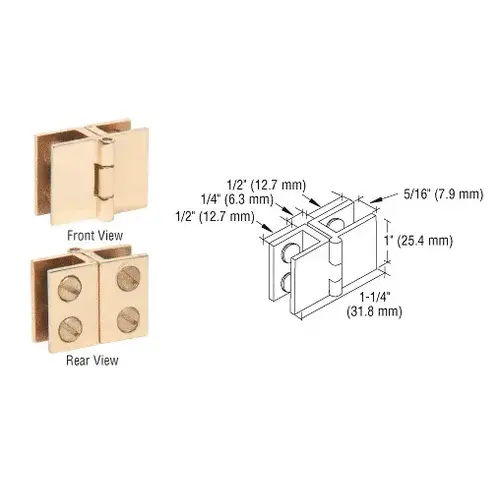

Features
  • For 3/16" and 1/4" (5 and 6 mm) Glass
  • No Holes or Cut-Outs Required
  • Two Per Package
  • Use Monolithic Tempered Glass

Face Height

1 in (25mm)

Face Width

1 in (25mm)

Overall Size

1-5/16 x 1 in (33 x 25 mm)

Finish

Polished Brass

Weight Capacity

8

Material

Brass

Open Width

1-1/4

Glazing Thickness

3/16 To 1/4

Maximum Door Width

16

Finish/Color

Polished Brass

Height

1

Product Overview

These CRL Outswing Hinges were designed for use in glass-to-glass showcase and stereo cabinets when the glass runs in a 180 degree plane. The glass is secured with plastic tipped set screws for no-drill attachment. The maximum recommended door width is 16" (406 mm). Maximum weight should not exceed 8 lbs. (3.6 kg).

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory: Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
