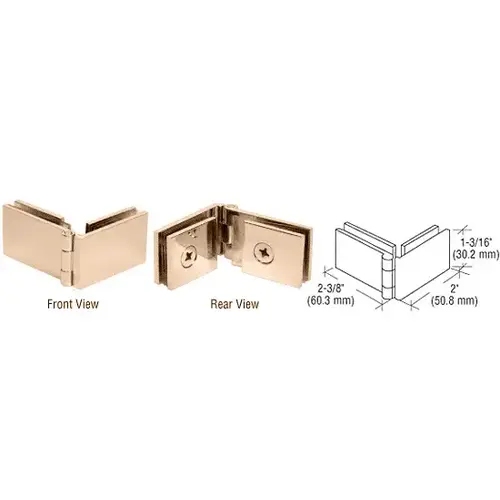

The CRL 90 Degree Glass-to-Glass Showcase Hinges are constructed of forged brass and are for use with 1/4" (6 mm) thick glass panels that meet at 90 Degrees. The overlapping lip on the side of the hinge prevents any rotation and assures a secure fit. This hinge is perfect for small all-glass showcases requiring a hinged front door. Hinges are through-bolted and require two 1/2" (12 mm) holes in the glass. Gaskets are included. The maximum recommended door width is 18" (457 mm).
NOTE: Maximum weight should not exceed 24 lbs. (10.9 kg).
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL EH138Click To Copy Brass 90 Degree Glass-to-Glass Showcase Hinge
Item #: EH138 by CR Laurence
See reviewsSee reviews
In Stock
$38.13
/eachSAVE UP TO 3.81
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 70 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For 1/4" (6 mm) Glass
- Ideal for Small All Glass Showcases Requiring a Hinged Front Door
- Two 1/2" (12 mm) Holes Required
- Use Monolithic Tempered Glass
Shipping Weight
1 lb (454g)
Finish
Polished Brass
Material
Brass
Width
2
Glazing Thickness
1/4
Finish/Color
Polished Brass
Height
1-3/16
Product Overview
The CRL 90 Degree Glass-to-Glass Showcase Hinges are constructed of forged brass and are for use with 1/4" (6 mm) thick glass panels that meet at 90 Degrees. The overlapping lip on the side of the hinge prevents any rotation and assures a secure fit. This hinge is perfect for small all-glass showcases requiring a hinged front door. Hinges are through-bolted and require two 1/2" (12 mm) holes in the glass. Gaskets are included. The maximum recommended door width is 18" (457 mm).
NOTE: Maximum weight should not exceed 24 lbs. (10.9 kg).
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory: Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
