CRL Brass AMR215 Series Patch Lock, High Density Cast Body, 3/8" And 1/2" Glazing Thickness, Polished Brass Finish
Item #: AMR215BR by CR Laurence
Brand: CRL
See reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed with a high-density cast body and finished in polished brass for use in commercial and residential door hardware.

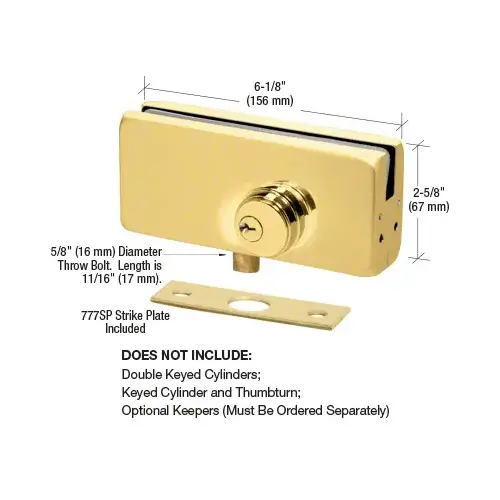

- Measures 2-9/16" in height and 6-1/8" in width, with a 5/8" diameter lock bolt and an 11/16" bolt length.
- Compatible with 3/8" and 1/2" glass thicknesses, including gaskets for secure mounting on glass panels.
- Features a taller profile housing for corner applications, suitable for top or bottom mount door installations.
- Designed for use with double keyed cylinders or keyed cylinder and thumbturn mechanisms, which are ordered separately.
- Suitable for commercial patch fitting hardware applications, including double door setups requiring a bottom patch lock.
- Includes a keeper, installation template, and instructions, requiring a 3/4" diameter hole and corner notch for fabrication.
Lock Bolt Diameter
5/8" (16 mm)
Bolt Length
11/16" (17.5 mm)
Finish
Brass
Height
2-9/16
Width
6-1/8
Glazing Thickness
3/8, 1/2
Finish/Color
Polished Brass
Product Overview
The Brass AMR215 Series Patch Lock is a heavy-duty patch lock designed for commercial and residential door hardware applications. This lock features a taller profile housing that provides coverage for glass panels in top and bottom corner installations. Constructed with a high-density cast body, the lock includes a 5/8" diameter lock bolt with an 11/16" bolt length. It is compatible with 3/8" and 1/2" glass thicknesses, utilizing included gaskets for proper fit. The lock measures 2-9/16" in height and 6-1/8" in width. Installation requires glass fabrication, specifically one 3/4" diameter hole and one corner notch for top or bottom mounting. This lock can be operated with double keyed cylinders or a keyed cylinder and thumbturn, which are ordered separately. A keeper is supplied with the unit, and optional keepers are available for specific installation requirements. For double door applications, a bottom patch lock is required on the inactive leaf to secure the pair of doors. The unit comes with a template and instructions for installation. The lock is finished in polished brass, providing a classic aesthetic for door hardware systems.
