SPECIFICATIONS:
Materials: Solid Brass
Available Finishes: Brass, Ultra Brass, Chrome, Satin Chrome (Matte), Brushed Nickel, Gold Plated, and White. Other finishes are available on special order.
Glass Thickness Range: 1/4" to 5/16" (6 to 8 mm)
Hole Required: Two 5/8" (16 mm) Diameter for Glass-to-Glass; One 5/8" (16 mm) Diameter for Fixed U-Clamp
Includes: Gaskets and Mounting Screws
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

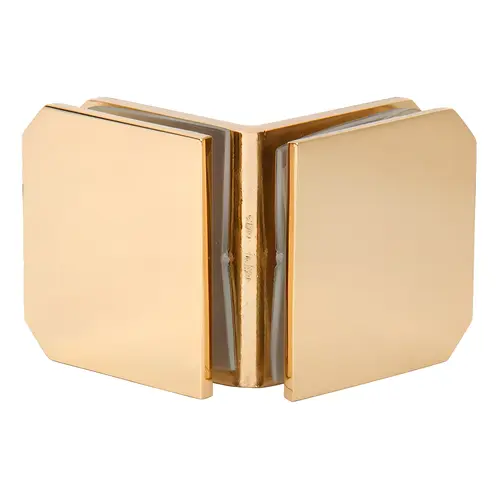

CRL Brass Monaco Series 90 Degree Glass-to-Glass Clamp
Item #: M0690BR by CR Laurence
Brand: CRL
Item Discontinued!See reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
- For 1/4" to 5/16" (6 to 8 mm) Thick Glass
- Glass Fabrication Required to Accommodate Clamps
- Same Design as Our Monaco Hinge
- Solid Brass
- Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
Height
1-3/4" (44.5 mm)
Width Each Leg
1-3/4 in (44 mm)
Width
1-3/4" (44.5 mm)
Finish
Brass
Mounting Type
Glass To Glass
Material
Brass
Glazing Thickness
1/4 in. (6 mm)
Finish/Color
Polished Brass
Series
Monaco
Glass To Glass Angle (Degrees)
90 degrees
Product Overview
CRL Monaco Series 90 Degree Glass-to-Glass Clamps are designed for 1/4" to 5/16" (6 to 8 mm) thick glass projects. The corners are cut away for a "softer" look. Made for connecting two panels at a 90 degree angle, or as a horizontal shelf bracket. Clamps are designed to be used with the CRL Monaco Shower Door line of hinges.
SPECIFICATIONS:
Materials: Solid Brass
Available Finishes: Brass, Ultra Brass, Chrome, Satin Chrome (Matte), Brushed Nickel, Gold Plated, and White. Other finishes are available on special order.
Glass Thickness Range: 1/4" to 5/16" (6 to 8 mm)
Hole Required: Two 5/8" (16 mm) Diameter for Glass-to-Glass; One 5/8" (16 mm) Diameter for Fixed U-Clamp
Includes: Gaskets and Mounting Screws
