30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Designed for 3/16" and 1/4" (5 and 6 mm) Glass
- Precision Machined and Quality Finished Hinge Designed for 3/16" (5 mm) Glass
- Use Monolithic Tempered Glass
3 oz (91g)

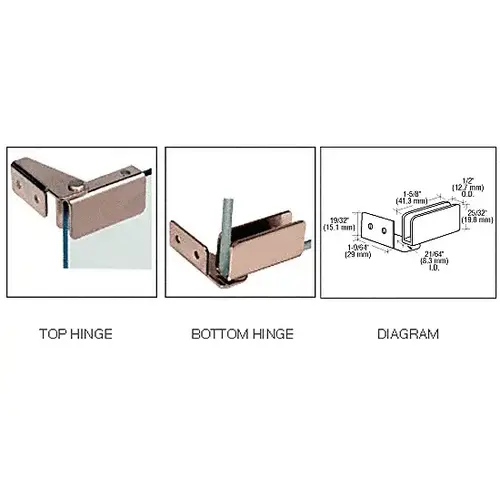

CRL Standard Mount Hinges are mounted in drilled holes in cabinet frame. Set screws secure glass in hinge openings. Includes nylon bushings for drilled holes. Use Cat. No. GDH5J1G Drill Jig with Cat. No. GDH5WDFAB drill bit for quick, easy installation. Hinges are made of steel and the maximum weight per pair is 16 lbs. (7 kg).
CRL's Stereo Cabinet Hardware is specifically designed for the fabrication of cabinets used for electronic components, china or collectibles. All of the hardware is manufactured with precision to ensure a precise fit and years of service. The Hinges and Accessories are available in brass, chrome, and black which adapts to all wood finishes as well as other room décor. Our full line of Stereo Cabinet Accessories will enable you to coordinate the style and color for all your hardware requirements. All components are designed to work with 3/16" (5 mm) tempered glass.
Glass Height: Opening Minus 1/2" (12.7 mm)
Single Door Width: Opening Minus 3/32" (2.4 mm)
Double Door Width: Opening Divided by 2, Minus 5/64" (2 mm). Maximum Door Dimensions 18" (457 mm) W x 39" (991 mm) H.
The dimensions are merely guidelines that should be satisfactory in most cases. For a very tight fit you should calculate your own dimensions.
