CRL Standard Mount Hinges are mounted in drilled holes in cabinet frame. Set screws secure glass in hinge openings. Includes nylon bushings for drilled holes. Use Cat. No. GDH5J1G Drill Jig with Cat. No. GDH5WDFAB drill bit for quick, easy installation. Hinges are made of steel and the maximum weight per pair is 16 lbs. (7 kg).
CRL's Stereo Cabinet Hardware is specifically designed for the fabrication of cabinets used for electronic components, china or collectibles. All of the hardware is manufactured with precision to ensure a precise fit and years of service. The Hinges and Accessories are available in brass, chrome, and black which adapts to all wood finishes as well as other room d cor. Our full line of Stereo Cabinet Accessories will enable you to coordinate the style and color for all your hardware requirements. All components are designed to work with 3/16" (5 mm) tempered glass.
SPECIFICATIONS:
Glass Height: Opening Plus 5/16" (7.9 mm)
Single Door Width: Opening Plus 3/4" (19 mm)
Double Door Width: Opening Divided by 2, Plus 11/32" (8.7 mm). Maximum Door Dimensions 18" (457 mm) W x 39" (991 mm) H.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

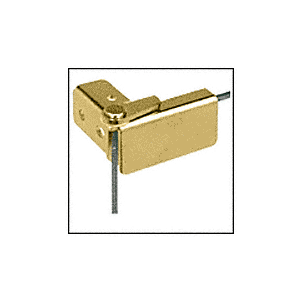

CRL GDH96BR Brass Surface Mount Glass Door Hinge Pair
Item #: GDH96BR by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Designed for 3/16" and 1/4" (5 and 6 mm) Glass
- Precision Machined and Quality Finished Hinge Designed for 3/16" (5 mm) Glass
- Use Monolithic Tempered Glass
Shipping Weight
3 oz (91g)
Finish
Brass
Weight Capacity
16
Material
Brass
Width
1-37/64
Glazing Thickness
3/16 To 1/4
Maximum Door Width
18
Finish/Color
Polished Brass
Height
25/32
Product Overview
CRL Standard Mount Hinges are mounted in drilled holes in cabinet frame. Set screws secure glass in hinge openings. Includes nylon bushings for drilled holes. Use Cat. No. GDH5J1G Drill Jig with Cat. No. GDH5WDFAB drill bit for quick, easy installation. Hinges are made of steel and the maximum weight per pair is 16 lbs. (7 kg).
CRL's Stereo Cabinet Hardware is specifically designed for the fabrication of cabinets used for electronic components, china or collectibles. All of the hardware is manufactured with precision to ensure a precise fit and years of service. The Hinges and Accessories are available in brass, chrome, and black which adapts to all wood finishes as well as other room d cor. Our full line of Stereo Cabinet Accessories will enable you to coordinate the style and color for all your hardware requirements. All components are designed to work with 3/16" (5 mm) tempered glass.
SPECIFICATIONS:
Glass Height: Opening Plus 5/16" (7.9 mm)
Single Door Width: Opening Plus 3/4" (19 mm)
Double Door Width: Opening Divided by 2, Plus 11/32" (8.7 mm). Maximum Door Dimensions 18" (457 mm) W x 39" (991 mm) H.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory: Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
