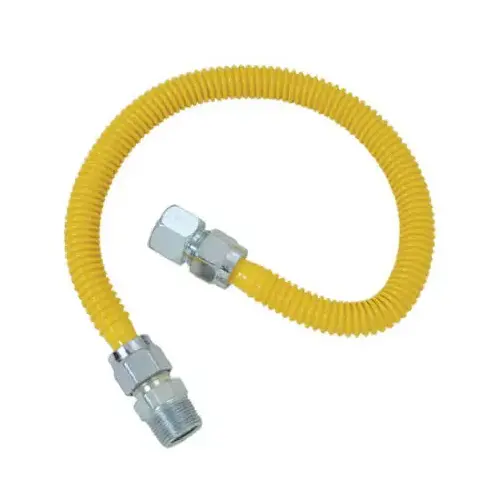

BrassCraft CSSC21-48 P ProCoat Series Gas Connector, 3/4 in FIP x 3/4 in MIP , Stainless Steel, 48 in L, 1/2 in FIP Tap
Item #: CSSC21-48 P by BRASSCRAFT - GAS CONNECTORS
UPC #: 026613114170
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Corrugated stainless steel with corrosion-resistant coating
- ProCoat coating corrosion-resistant to harsh chemicals as well as UV rays and salt
- Smooth, burnished connector ends seal with less torque, making installation easier
- High tensile strength stainless steel is less susceptible to work hardening
- Deep corrugations enhance flexibility and maneuverability of connector during installation
- Gas connector is 100% leak tested
Material
Stainless Steel
Application
For large demand appliances such as 5-burner gas ranges, furnaces and smaller Btu residential tankless water heaters
Length
48"
Packaging Type
Bagged
Defective Code
A
Each Weight
1.300 LB
Hazardous Material
No
Inlet Diameter
3/4
Inlet Fitting Type
FIP
Outlet Diameter
3/4
Outlet Fitting Type
MIP
Returnable
Yes
Sub Brand
ProCoat
Temperature Rating
-40 deg.F to 150 deg.F
Velocity
C
Working Pressure
0.5 psi
Product Type
Gas Connector
Height
10.50
Width
9.25
ECCN
EAR99
Country Origin Code
US
Operating Temperature
-40 to 150 deg F
Nominal Size
3/4 in FIP x 3/4 in MIP"
Pressure rating
0.5 psi
Nomenclature
CSSC21-48P GAS CONNECT 3/4X48
Specifications:
Includes: 3/4 in MIP Steel Fitting and 3/4 in FIP Inlet Brass Angle Gas Ball Valve 1/2 in FIP Tap
Suitable for: Natural Manufactured Mixed and Liquefied Petroleum (LP or Propane) Gases and LP Gas-Air Mixtures
BrassCraft's ProCoat stainless steel gas connector is engineered with added safety in mind. The proprietary polymer coating is designed to withstand prolonged exposure to harsh household chemicals, UV rays and salt. ProCoat is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly onto the connector surface at high temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion resistance available.
