CRL D4030BA Brite Anodized Custom Size Newport Showcase

  • Comes K.D. for Easy Shipping and Ready for Immediate Assembly
  • Custom Made to Your Specifications
  • Our Most Popular Custom Showcase Frame
See Full Product Description

Have a Question?

Chat with our Expert


Description

  • Comes K.D. for Easy Shipping and Ready for Immediate Assembly
  • Custom Made to Your Specifications
  • Our Most Popular Custom Showcase Frame

  • Product Description
  • Technical Details 5
  • Product Reviews 1
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Minimum Order

1 Each

Max Width

72" (1.83 m)

Max Height

48" (1.22 m)

Max Depth

24" (610 mm)

Finish

Brite Anodized

  • Comes K.D. for Easy Shipping and Ready for Immediate Assembly
  • Custom Made to Your Specifications
  • Our Most Popular Custom Showcase Frame

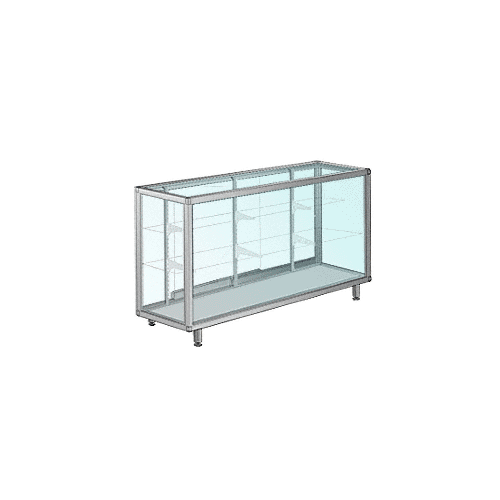

The CRL Newport Custom Size Showcase Frame is our most popular, easy to assemble showcase frame. It comes to you knocked-down with all extrusions cut-to-size. All parts, vinyl, accessories, and assembly instructions are packed in the box. All you need to supply is the glass, a 3/4" (19 mm) thick floor board, legs, standards, and brackets.
The top and bottom frames are a wrap-around design and are fastened together by simply inserting the four corners and tightening the screws. Next wrap the front and side glass panels with vinyl, place the uprights on the bottom lugs, insert the vinyl wrapped glass between the uprights, and then take the top frame and insert the lugs into the uprights. Secure the uprights to the top and bottom lugs with the eight screws provided. Attach the sliding glass to the 'H' Bar Shoe and place on the track. Drop in the glass top and your showcase is complete.
Maximum dimensions for Newport Showcase Frames are 72" (1.83 m) wide, 48" (1.22 m) high, and 24" (610 mm) deep. All frames are supplied with sliding track hardware.
Optional legs, standards, brackets, reflectors, and locks must be ordered separately. All Custom Showcase Frames are fabricated and shipped from our Los Angeles facility. Be sure of requirements before ordering, as Custom Frames may not be returned for credit. Important Notes: All Custom Showcase Frames are fabricated and shipped from our Los Angeles Service Center. Be sure of dimensions and requirements before ordering, as custom frames may not be returned for credit.
