30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- The window balance ensures stable, smooth movement for single and double-hung sliding windows.
- Made from strong aluminum for long-term performance and corrosion-resistant window repair.
- Channel balance measures 22" length, 9/16" width, and 1/2" depth for standard window fitting.
- Supports window sash weights from 15 to 23 lbs, providing strong and steady sash support.
- Includes attached white plastic sash guides for smooth motion and proper sash alignment.
- Top guide measures 1-1/4" Height x 9/16" Width x 11/16" Bottom Depth for proper window mechanism balance.
- Bottom guide measures 1-1/16" Height x 15/16" Width x 3/8" Mounting Tab Depth to help maintain steady sash balance.
Finish
Aluminum
Material
Aluminum
Channel Length
22" (559mm)
Channel Width
9/16" (14mm)
Channel Depth
1/2" (13mm)
Sash Weight
15 to 23 Lbs
Bottom Guide Height
1-1/16" (27mm)
Bottom Guide Width
15/16" (24mm)
Number Stamped on Balance
2140
Top Guide Bottom Depth
11/16" (17mm)
Top Guide Upper Depth
19/32" (15mm)
Top Guide Width
9/16" (14mm)
Bottom Guide Mounting Tab Depth
3/8" (10mm)
Sash Guide Material
Plastic
Sash Guide
With 60-503a Bottom And 60-508a Top
Sash Guide Finish
White
Top Guide Height
1-1/4" (32mm)
Product Overview

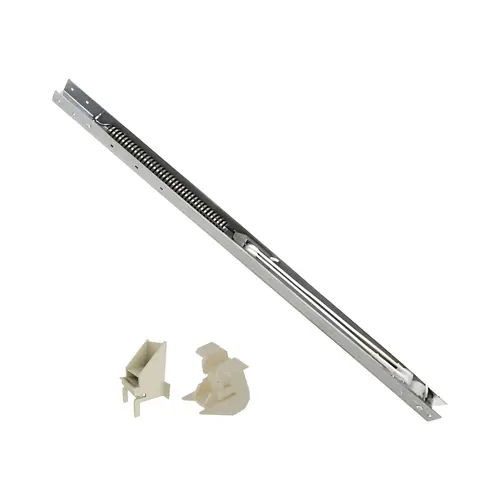

The window channel balance is designed for vertical sliding window sash systems and fits both single and double-hung windows. Made from aluminum, it ensures strength, corrosion resistance, and smooth sash movement, making it ideal for window repair and replacement. The channel balance measures 22" in length, 9/16" in width, and 1/2" in depth, and supports window sash weights between 15 to 23 lbs. It comes with attached white plastic sash guides, the top guide (60-508a) measuring 1-1/4" height, 9/16" width, 11/16" bottom depth, and 19/32" upper depth and the bottom guide (60-503a) measuring 1-1/16" height, 15/16" width, and 3/8" mpounting tab depth. This sash balance includes a take-out clip and rivet components for easy installation and secure mounting. Functioning with a window spring and balance hardware, it provides even tension and reliable operation. The balance system offers stable sash support and smooth window mechanism performance for regular use.
