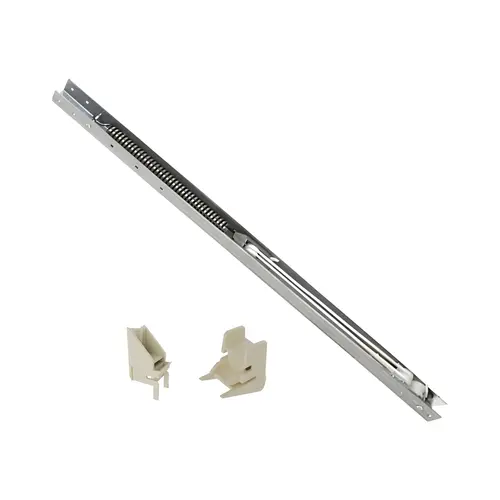

Brixwell 60-293-1 Window Channel Balance 16 To 23 Lbs Sash Weight 30" Length With 60-507a Top and 60-501a Bottom Sash Guide Aluminium

Item #: 60-293-1 by Brixwell

Brand: Brixwell

UPC #: 192085001048

See reviewsSee reviews
See reviews summary
In Stock

$13.95

/each
SAVE UP TO 1.39
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 669 units available

Sash Guide: With 60-507a Top and 60-501a Bottom

With 60-507a Top and 60-500a Bottom
With 60-507a Top and 60-501a Bottom
With 60-508a Top and 60-501a Bottom
With 60-508a Top and 60-503a Bottom
With 60-508a Top and 60-904a Bottom
With 60-508a Top And 60-943a Bottom
With 60-508a Top And 60-980a Bottom
With 60-563a Top and 60-500a Bottom
With 60-595a Top And 60-596a Bottom
With 60-901a Top And 60-902a Bottom
With 60-936a Top And 60-500a Bottom
With 60-508a Top And 60-5011a Bottom
Without
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Aluminium channel with internal spring supports sash counterbalance in hung window systems.
  • Aluminium finish maintains consistent contact surfaces along the jamb track.
  • Channel measures 9/16" width, 1/2" depth, and 30" length for fit.
  • Rated for window sashes within the 16 to 23 lbs weight range, providing assisted lift and controlled lowering through the opening height.
  • White Plastic Top guide comes with 9/16" upper width, 1/2" lower width, 1-1/4" height, 23/32" upper depth to support sash interface.
  • Plastic Bottom guide 15/32" width, 1-1/8" height, and 1" depth for alignment.
  • Designed for general replacement use in compatible hung window systems

Finish

Aluminium

Material

Aluminium

Number on Balance

2930

Bottom Sash Guide (W x H x D)

15/32" (12mm) x 1-1/8" (29mm) x 1" (25mm)

Channel (W x D x L)

9/16" (14mm) x 1/2" (13mm) x 30" (762mm)

Top Sash Guide Height

1-1/4" (32mm)

Top Sash Guide Upper Width

9/16" (14mm)

Sash Guide Material

Plastic

Sash Guide

With 60-507a Top and 60-501a Bottom

Sash Guide Finish

White

Top Sash Guide Lower Width

1/2" (13mm)

Sash Guides Attached

Yes

Top Sash Guide Upper Depth

23/32" (18mm)

Sash Weight Range

16 to 23 lbs

Product Overview
The 30" Window Channel Balance is engineered to support and counterbalance hung window sashes within a 16 to 23 lbs operating range. Constructed from aluminium with an aluminium finish, the assembly uses an internal spring to offset sash mass and promote stable vertical motion. The channel profile measures 9/16" in width, 1/2" in depth, and 30" in length, matching jamb tracks designed for this geometry. It includes an attached plastic 60-507a top sash guide and 60-501a bottom sash guide with white finish for direct installation. The top guide features a 9/16" upper width, 1-1/4" height, 23/32" upper depth. 1/2" lower width while the bottom guide measures 15/32" width, 1-1/8" height, and 1" depth. Together they align sash edges for balanced travel within the track. Installation involves seating the balance in the jamb channel, confirming guide alignment, and setting spring engagement as specified by the window design. Routine service consists of clearing debris from the track, checking wear at contact points, and verifying tension to maintain consistent function over repeated cycles.
