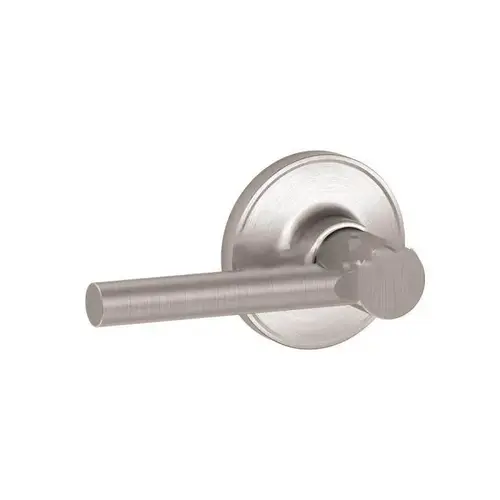

Schlage Residential J10BRW626 Broadway Lever Passage Lock with Adjustable Latch and Radius Strike Satin Chrome Finish
Item #: J10BRW626 by Dexter by Schlage
UPC #: 043156008599
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Grade
ANSI/BHMA Grade 3
Backset
2-3/8 Inch or 2-3/4 Inch
Warranty
Lifetime Limited Mechanical & Finish Warranty
Color Code
626/US26D
Function
10-Hall/Closet
Door Thickness
1-3/8" to 1-3/4"
Strike
Full Lip 2-1/4 Inch, Radius Corner
Finish Description
Satin Chrome
ANSI Function
F75
Latch Type
Spring
Strike Type
Full Lip
ADA Compliant
YES
Finish Family
Satin Chrome
Included Components
Passage knobs, roses, latch, strike, mounting hardware
Lever Style
BRW-Broadway
Strike Size
1-5/8 x 2-1/4 Inch
Rose/Escutcheon Trim
Round Rose
Door Cross Bore
2.125 Inch
Product Material
Zinc
Standards
ANSI/BHMA A156.2-2011 Commercial Grade 3
Faceplate Dimension
1/4"
Function Description
Latch retracted by knobs/levers at all times
Function Family
Passage/Hall/Closet
Product Type
Cylindrical Lock
Series
J Series
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Lever Style Family
Straight Lever
Sub-Series
RL_Lever_Locksets_schlage_residential_134
Finish
Satin Chrome
Dimension
4-3/8" Lever Length and 2-1/4" Projection with 2-5/8" Diameter Rose
Material
Zinc
Handing
Reversible
Manufacturer Warranty
Limited Lifetime Mechanical and 5 Year Finish Warranty
Rose/Escutcheon Design
Round Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
626
Design
Broadway Lever
Latch Faceplate Dimension
Round Corner 1" x 2-1/4" Faceplate or 1" Collar
Lever Knob Design
Broadway Lever
No of inners
1
Product Overview
J SeriesLevers
From classic looks that never go out of style to bold contemporary designs, Schlage's levers and door handles fit and accentuate virtually any décor. Available in a variety of functions, you can choose the perfect look for every room in your house - it's the easiest way to give your entire home a style upgrade.
Available Functions: J10/F75 - Hall & Closet*:- Both levers always unlocked
- Turn-button locking. Can be opened from outside by turning outside turn mechanism
- From interior, turning inside turn-button releases inside lever
- Push-button locking. Can be opened from outside with small circular tool
- Turning inside knob/lever releases button
- ADA Compliant
- Non-turning trim for one side of door
- Used for door pull or as matching inactive trim
- Unlocked by key from outside whenouter knob is locked by turn-button in inside knob
- Inside knob is locked and unlocked by turn-button
- *Non-keyed Locks
- **Keyed Locks
- 16-255 - Triple Option (Round, Square, Drive-in) - Standard
- 16-061 - UL Listed, Square Corner
- 16-254 - Dual Option (Round, Drive-in) - Standard
- 16-070 - Triple Option Spring Latch for handlesets
- 10-101 - Round Corner Full Lip - Standard
- ANSI/BHMA A156 .2-2011 Commercial Grade 3
- Dual Option: 1" x 2 1/4", 1/4" round faceplate and drive-in
- Triple Option: 1" x 2 1/4", square corner and round corner faceplate, drive-in latch (J54)
- 1 5/8" x 2 1/4", radius corner, full lip, no box
- Adjustable for 2 3/8" or 2 3/4"
- 5-pin, C keyway, keyed alike (KA4)
- 1 3/8" - 1 3/4"
- Two brass cut keys per lock, 5-pin, C section
- Bright Brass (US3)
- Antique Brass (US5)
- Satin Nickel (US15)
- Antique Pewter (US15A)
- Matte Black (US19)
- Bright Chrome (US26)
- Satin Chrome (US26D)
- Satin Stainless Steel (US32D)
- Aged Bronze
- *Non-standard finishes are not available
- Full-color swatch examples available on inside Levers tab
