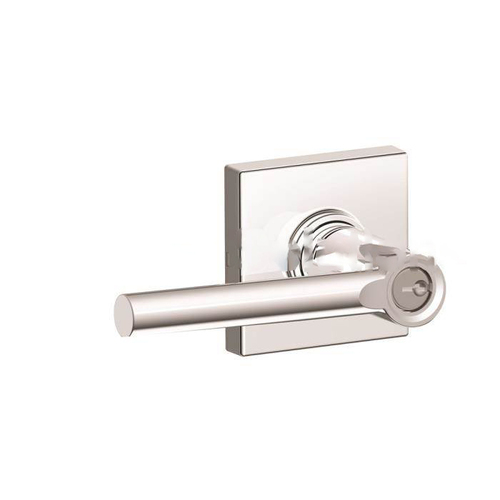

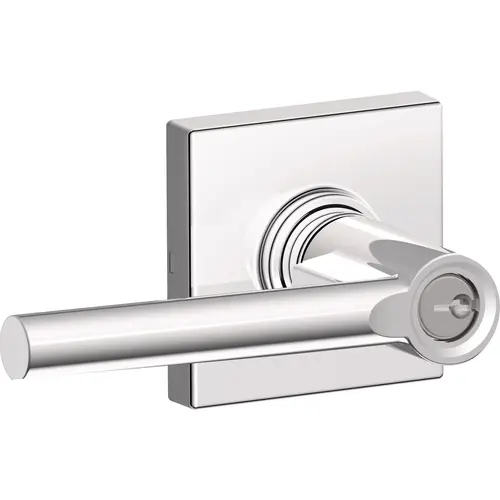

Schlage Residential J54BRW625COL Broadway Lever with Collins Rose Entry Lock with C Keyway, Adjustable Latch, and Radius Strike Bright Chrome Finish
Item #: J54BRW625COL by Dexter by Schlage
UPC #: 043156008483
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Entry (Keyed) Function - Locked by Key and Rotating Cylinder from Outside; Unlocked by Key on Outside or from Turn Button on inside
- ANSI/BHMA A156.36 Grade 3
- Reversible Handing
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & 5 Year Finish Warranty
Finish
Polished Chrome
Backset
2-3/8 Inch or 2-3/4 Inch
Handing
Reversible
Function
Keyed Entry
Strike
Full Lip 2-1/4 Inch, Radius Corner
Design
Broadway Lever with Collins Rose
Series
J Series
Bolt Throw
1/2 Inch
Cylinder Type
Conventional Cylinder
Finish Description
Bright Polished Chrome
Latch Type
Drive-In
Strike Type
Full Lip
ADA Compliant
No
Finish Family
Polished Chrome
Included Components
(2) Brass Cut Keys
Lever Style
BRW-Broadway
Strike Size
1-5/8 x 2-1/4 Inch
Keyblank Grouping
SCHR-C-5-1
Rose/Escutcheon Trim
COL-Collins
Door Cross Bore
2.125 Inch
Keying Charges
Residential-Conventional
Standards
ANSI/BHMA A156.2-2011
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore 2-1/8"; Edge Bore 1"
Function Description
Both sides locked or unlocked by key outside or push button inside
Function Family
Entry/Entrance/Office
Features
Installs In Minutes With Screwdriver; Guaranteed To Fit On Standard Doors
Product Type
Cylindrical Lock
Warranty
Limited Lifetime Mechanical Warranty and 5-Year Finish Warranty
Color Code
625/US26
Keyway
SC1 5-Pin Pin & Tumbler
Grade
ANSI/BHMA Grade 3
Application
Commercial
Door Thickness
1-3/8" to 1-3/4"
Manufacturer Parent
Allegion
Lever Style Family
Straight Lever
Sub-Series
RL_Lever_Locksets_schlage_residential_301
Collection
Broadway
Package Height
3.07"
Package Length
6.69"
Package Width
5.71"
Item Weight
1.58 lbs
Dimension
4-3/8" Lever Length and 2-1/4" Projection with 2-5/8" x 2-5/8" Rose
Material
Zinc
Manufacturer Warranty
Limited Lifetime Mechanical and 5 Year Finish Warranty
Rose/Escutcheon Design
Collins Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
625
Latch Faceplate Dimension
Square and Round Corner 1" x 2-1/4" Faceplate or 1" Collar
Lever Knob Design
Broadway Lever
No of inners
1
No Of Pins
5 Pin Cylinder
Product Overview
The Schlage J-Series Broadway Lever with Collins Trim Keyed Entry Lock in Bright Chrome locks and unlocks with a key from the outside or with an interior turn button. The minimal, tubular design of the Broadway lever offers a tastefully reserved yet high-style look, while the Collins trim's strong lines and square shape embody refined elegance. Our mirror-like Bright Chrome finish adds a touch of drama. Plus, it's been designed and tested with strength and durability in mind.
