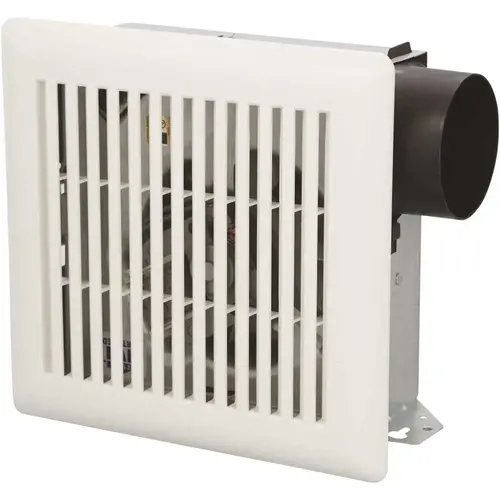

Broan-NuTone 696N 50 CFM Wall/Ceiling Mount Bathroom Exhaust Fan White
Item #: 696N by Broan-NuTone, LLC
UPC #: 784891258411
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Housing Width (in.)
7.5
HVAC Amperage
0.9
Wattage (watts)
0
Color
White
Mounting Length
7.5 in.
HVAC Product Type
Exhaust Fans & Parts
Shape
Square
Product Width (in.)
8.75
Heater Included
NO
Bath Product Type
Exhaust Fan
Kit
No
Certifications and Listings
HVI Certified, UL Listed
Voltage
120
Air Volume (CFM)
50, 50 CFM, Under 80 CFM
Product Height (in.)
4.625
Mounting Width
7.25 in.
Grill Shape
Rectangle
Housing Material
Galvanized Steel
Housing Length (in.)
7.25
Pack Size
1
Features
No Additional Features
Maximum CFM
50 CFM
Product Length (in.)
8.5
Warranty
Limited 1 Year
Manufacturer Warranty
Limited 1 Year
Duct Compatible Sizes
3 in
Lights Included
NO
UNSPSC
39111543
Package Quantity
1
Recommended Use
Bathroom
UL Listed
No
Amperage
0.9 Amp
ADA Compliant
No
Enclosure Material
Steel
Duct Shape
Round
Mount Type
Wall/Ceiling
Connection Type
False
Grill Material
Polymer
MADE IN THE USA
Yes
Assembled Product Height
3.63 in.
Assembled Product Width
7.25 in.
GSA Approved
Yes
Exhaust Fan Features
No Additional Features
Grill Color
White
AbilityOne
No
TAA/BAA Compliant
Yes
ENERGY STAR® Qualified
No
Product Overview
The NuTone 696N Wall/Ceiling 50 CFM Bath Fan is ideal for baths up to 45 sq. ft. It is also suitable for utility and recreation rooms up to 60 sq. ft. The attractive yet functional white polymeric grille has torsion springs that allow adjustment for thickness variances in ceilings or walls.
- 50 CFM, sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
- 4.0 audible sones for privacy while using your bathroom
- Mounts on either 16 in. or 24 in. O.C. joist or stud
- Compact housing for versatile installation
- Extra-large outlet box area
- UL-listed; safe for use over tub or shower enclosure when installed in a GFCI protected branch circuit
- Powerful enough for rooms up to 45 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
- Comparable to Broan Model 688
- For any questions regarding product features, installation, or specifications, please call our Technical Services Dept. at 800-637-1453, Monday-Friday, 8:00 am “ 7:00 pm EST.
