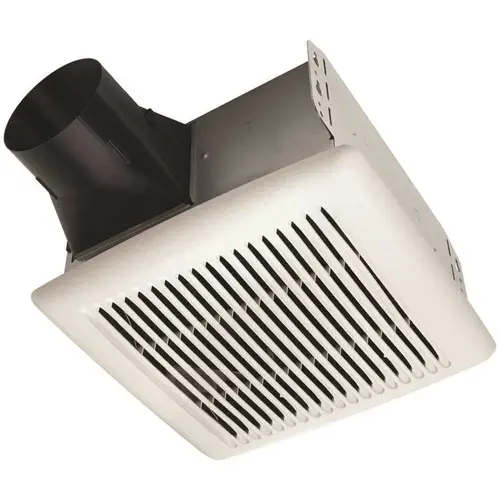

Broan-NuTone AE80B Flex Series 80 CFM Ceiling Mount Room Side Installation Bathroom Exhaust Fan, ENERGY STAR* White
Item #: AE80B by Broan-NuTone, LLC
UPC #: 026715236008
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Voltage
120
Warranty
3 Year Limited
Color
White
Pack Size
1
Manufacturer Warranty
3 Year Limited
Air Volume (CFM)
80, 80 CFM, 80-99 CFM
Bath Product Type
Exhaust Fan
Certifications and Listings
cUL Listed, HVI Certified, UL Listed
Duct Compatible Sizes
4 in
Grill Shape
Rectangle
Housing Length (in.)
9.25
Housing Width (in.)
10
HVAC Amperage
0.3
HVAC Product Type
Exhaust Fans & Parts
Included
No Additional Items Included
Product Height (in.)
6.7
Product Length (in.)
11.5
Product Width (in.)
12
Wattage (watts)
26.9
Cut-Out Width (in.)
9.75
Features
Roomside Installation
Housing Material
Galvanized Steel
UNSPSC
39111543
For Use With
4 In. Duct
Width (in)
11.5
Length (in)
12
Certification
Energy Star Rated, UL Listed
CFM
80
Sound Rating (Sones)
1.2
Wattage
26.9 W
Package Quantity
1
UL Listed
Yes
Amperage
0.3 amp
ADA Compliant
No
Enclosure Material
Steel
MADE IN THE USA
Yes
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
ENERGY STAR® Qualified
Yes
Product Overview
Enjoy easy exhaust bath fan installation with the Flex Series 80 CFM Ceiling Exhaust Bath Fan, ENERGY STAR®. Room side installation eliminates the need for Attic Access. This ceiling-mounted ventilation fan features foldable mounting ears and an EzDuct„¢ connector for a fast and simple installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. Operating capabilities allow this fan to run at a powerful 80 CFM and a quiet 1.2 sones for a smooth run.
- 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 1.2 Sones for Quiet performance, enough sound to know your fan is on.
- TrueSeal„¢ Damper technology reduces air leakage up to 50%
- EzDuct„¢ connector can be installed from the room side, with no attic access required
- ENERGY STAR® certified for energy efficiency
- UL listed for use over tub or shower when connected to a GFCI-protected branch circuit (ceiling mount only)
- Powerful enough for rooms up to 75 sq. ft.
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
- Comparable to NuTone Model AEN80B
- Comparable to NuTone model AEN80B
- Can be installed in a wall if mounted 8-ft. or more above the floor (duct connector must point up)
- For any questions regarding product features, installation, or specifications, please call our Technical Services Dept. at 800-637-1453, Monday-Friday, 8:00 am - 7:00 pm EST.
