This CRL Casement Window Operator is a quality metal operator designed to replace most obsolete models. Operator body and crank handle are made from diecast zinc, while the gear arm is stamped steel. The smooth movement and durable construction allow for years of trouble-free use. The operator has teardrop styling and a 5/16" (7.9 mm) spline size. Each Operator includes mounting screws.
When measuring the arm length, always measure from the center of the Operator body at the pivot point to the center of the pivot at the end of the arm. These Operators have solid steel pivots which match Cat. No. H3529 Casement Track. In rare cases it may be necessary to replace the track if the old casement had a roller pivot or brass slide.
NOTE: Handing of casement window operators is determined by the hinged side of the window when looking from the inside out.
Live Chat
24/7 Help Sign in for the Best Experience
Don't have an Account? Create an Account
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL 5009LHBRZ Bronze 9" Left Hand Teardrop Series Casement Window Operator
Item #: 5009LHBRZ by CR Laurence
1 1
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Available in Arm Lengths: 6", 7", 8", 9" (152, 178, 203, 228 mm)
- Available in Aluminum, Bronze, and White
- Crank Handle and Fasteners Included
- Teardrop Back Style Fit Most Metal Casement Windows
Shipping Weight
1 lb (454g)
Handed
Left Hand
Length
9" (229 mm)
Finish
Bronze
Handing
Left Hand
Spline Size
5/16
Arm Length
9
Finish/Color
Bronze

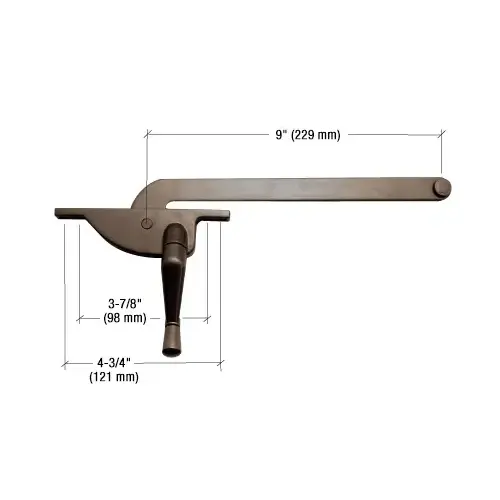

Inner Mounting Hole (Center to Center)
3 7/8
Outer Mounting Hole (Center to Center)
4 3/4
Teardrop Operator
Yes
Inner Mounting Hole
3 7/8
Outer Mounting Hole
4 3/4
This CRL Casement Window Operator is a quality metal operator designed to replace most obsolete models. Operator body and crank handle are made from diecast zinc, while the gear arm is stamped steel. The smooth movement and durable construction allow for years of trouble-free use. The operator has teardrop styling and a 5/16" (7.9 mm) spline size. Each Operator includes mounting screws.
When measuring the arm length, always measure from the center of the Operator body at the pivot point to the center of the pivot at the end of the arm. These Operators have solid steel pivots which match Cat. No. H3529 Casement Track. In rare cases it may be necessary to replace the track if the old casement had a roller pivot or brass slide.
NOTE: Handing of casement window operators is determined by the hinged side of the window when looking from the inside out.
.
