This CRL Casement Window Operator is a quality metal operator designed to replace most obsolete models. Operator body and crank handle are made from diecast zinc, while the gear arm is stamped steel. The smooth movement and durable construction allow for years of trouble-free use. The operator has teardrop styling and a 5/16" (7.9 mm) spline size. Each Operator includes mounting screws.
When measuring the arm length, always measure from the center of the Operator body at the pivot point to the center of the pivot at the end of the arm. These Operators have solid steel pivots which match Cat. No. H3529 Casement Track. In rare cases it may be necessary to replace the track if the old casement had a roller pivot or brass slide.
NOTE: Handing of casement window operators is determined by the hinged side of the window when looking from the inside out.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

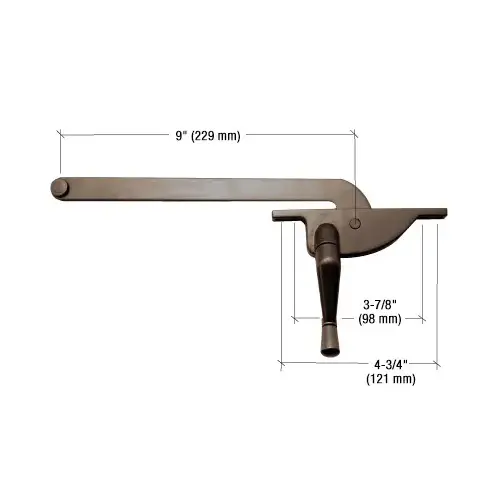

CRL 5009RHBRZ Bronze 9" Right Hand Teardrop Series Casement Window Operator
Item #: 5009RHBRZ by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Available in Arm Lengths: 6", 7", 8", 9" (152, 178, 203, 228 mm)
- Available in Aluminum, Bronze, and White
- Crank Handle and Fasteners Included
- Teardrop Back Style Fit Most Metal Casement Windows
Shipping Weight
1 lb (454g)
Handed
Right Hand
Length
9" (229 mm)
Finish
Bronze
Handing
Right Hand
Spline Size
5/16
Arm Length
9
Finish/Color
Bronze
Inner Mounting Hole (Center to Center)
3 7/8
Outer Mounting Hole (Center to Center)
4 3/4
Teardrop Operator
Yes
Inner Mounting Hole
3 7/8
Outer Mounting Hole
4 3/4
Product Overview
This CRL Casement Window Operator is a quality metal operator designed to replace most obsolete models. Operator body and crank handle are made from diecast zinc, while the gear arm is stamped steel. The smooth movement and durable construction allow for years of trouble-free use. The operator has teardrop styling and a 5/16" (7.9 mm) spline size. Each Operator includes mounting screws.
When measuring the arm length, always measure from the center of the Operator body at the pivot point to the center of the pivot at the end of the arm. These Operators have solid steel pivots which match Cat. No. H3529 Casement Track. In rare cases it may be necessary to replace the track if the old casement had a roller pivot or brass slide.
NOTE: Handing of casement window operators is determined by the hinged side of the window when looking from the inside out.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
