The Monterey Bi-Folding Glass Wall System allows you to bring in the outdoors while providing resistance to undesirable weather conditions. Countless options are available to create large living spaces that seamlessly transition outdoors to indoors. Our precision engineered components provide a system that slides smoothly with minimal effort while supporting multiple panels in a single opening. The Monterey Series provides security with two point interior lever latch as standard with three point keyed locks available on some configurations. CRL Monterey Bi-Fold Sliding Door Systems are a contemporary way to maximize the space available in residential or commercial properties, while at the same time creating stunning areas with brilliant transparency.
Our Monterey Series Bi-Folding Sliding Door System can accommodate door configurations ranging from 2 to 26 panels and allows them to be stacked with minimum effort to one or both sides, leaving an enormous wide open space. A pivoting door, that will also fold up with the entire system, can be incorporated into many configurations. Design options are virtually limitless. The sturdy, yet slim frame construction allows for more glass and less metal. The Monterey Series is designed for 1/4" to 1-1/4" (6 to 32 mm) glazing thickness, and the frames are available in white, black, and wood grain powder coated, satin and black bronze anodized finishes as standard with custom finishes also available.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

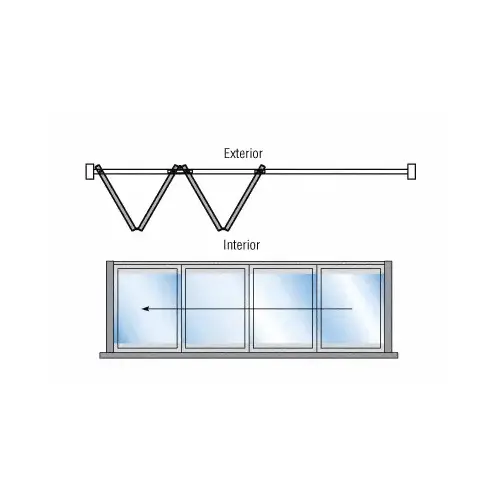

CRL M7A40F1DU Bronze Anodized S80 Monterey Thermally Broken Bi-Fold 4 Panel Left Hand Interior Swing with Flush Sill
Item #: M7A40F1DU by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Designed for Interior Use Only
- Thermally Broken Option Available
- Easy to Operate Panels
- Easy to Operate Panels Open and Close Effortlessly
- Fully Assembled, Ready for Glazing
- New Construction or Retrofit, Commercial and Residential
- Weather Resistant, Designed for Interior Use
- White, Black, and Wood Grain Powder Coat, Satin and Black Bronze Anodized are Standard, with Custom Colors Available
Swing
Inswing
Type
4 Panel
Finish
Black Bronze Anodized
Use With
Flush Sill
Maximum Panel Weight (Pounds)
100
Maximum Height Interior Application (Inches)
120
Glazing Type
Tempered Insulated
Acoustic Rating
32
Frame Depth
3-3/16
Configuration
4 Panel Left Hand
Thermally Broken
Yes
Glazing Thickness
1, 1-1/4
Minimum Overall Opening Width (Inches)
71
Door Type
Framed Bi-Folding Doors
Top Hung
Yes
STC Tested
Yes
Panel Thickness
2-7/8
Panel Stile Width (Inches)
2-3/8
Flush Sill
Yes
Finish/Color
Black Bronze Anodized
Series
S80
2 Point Lever Latch
Yes
Maximum Height Interior Application
120 in. (3048 mm)
Maximum Panel Weight
100 lbs. (45.4 kg)
Minimum Overall Opening Width
71 in. (1803 mm)
Panel Stile Width
2-3/8 in. (60 mm)
Product Overview
The Monterey Bi-Folding Glass Wall System allows you to bring in the outdoors while providing resistance to undesirable weather conditions. Countless options are available to create large living spaces that seamlessly transition outdoors to indoors. Our precision engineered components provide a system that slides smoothly with minimal effort while supporting multiple panels in a single opening. The Monterey Series provides security with two point interior lever latch as standard with three point keyed locks available on some configurations. CRL Monterey Bi-Fold Sliding Door Systems are a contemporary way to maximize the space available in residential or commercial properties, while at the same time creating stunning areas with brilliant transparency.
Our Monterey Series Bi-Folding Sliding Door System can accommodate door configurations ranging from 2 to 26 panels and allows them to be stacked with minimum effort to one or both sides, leaving an enormous wide open space. A pivoting door, that will also fold up with the entire system, can be incorporated into many configurations. Design options are virtually limitless. The sturdy, yet slim frame construction allows for more glass and less metal. The Monterey Series is designed for 1/4" to 1-1/4" (6 to 32 mm) glazing thickness, and the frames are available in white, black, and wood grain powder coated, satin and black bronze anodized finishes as standard with custom finishes also available.
.
