Solid brass CRL Standard 180 Degree Glass Clamps are ideal for fixed transom or inline panel installations in frameless shower enclosures.
Our solid brass Traditional Glass Clamps are designed to secure glass panels in contemporary shower enclosures. They assist in maintaining the frameless appearance, and provide a clean looking alternative to U-Channel. All Traditional Clamps feature solid brass construction and a variety of finishes to match our complete line of Shower Door Hinges. Appropriate mounting screws and one set of clear gaskets are included with each Clamp. Extra Cat. No. UCG77 Clear Gaskets may be ordered separately.
SPECIFICATIONS:
Materials: Solid Brass
Available Finishes: Shown at top of page.
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Fabrication Required: Stud will fit between panels with 7/16" (11 mm) gap, or you can notch the glass around the screw stud for a tighter gap.
Includes: Gaskets
NOTE: An additional set of gaskets is required for 5/16" (8 mm) glass (Cat. No. UCG77).
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

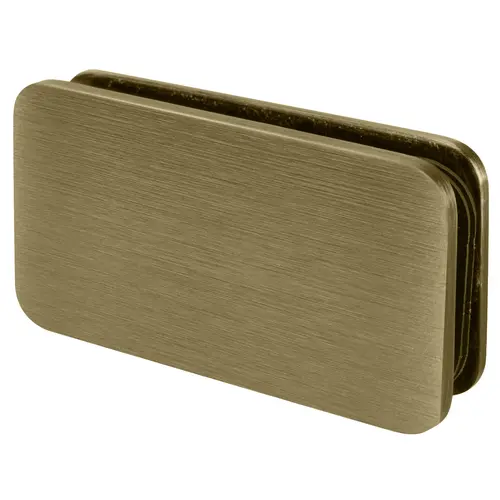

CRL GCB180BBRZ Brushed Bronze 180 Degree Traditional Style Glass Clamp
Item #: GCB180BBRZ by CR Laurence
Brand: CRL
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- For 5/16" to 1/2" (8 or 12 mm) Thick Glass
- Use Monolithic Tempered Glass
- Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
- Solid Brass
- A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
- Glass Fabrication Required to Accommodate Clamps
Height
1-3/4 in (44.5 mm)
Width
3-1/4 in (82.6 mm)
Finish
Brushed Bronze
Type
Standard 180 Degree
Mounting Type
Glass To Glass
Material
Brass
Glazing Thickness
5/16 To 1/2
Finish/Color
Brushed Bronze
Series
Traditional
Glass To Glass Angle
180 degrees
Mounting Style
Glass To Glass
Product Overview
Solid brass CRL Standard 180 Degree Glass Clamps are ideal for fixed transom or inline panel installations in frameless shower enclosures.
Our solid brass Traditional Glass Clamps are designed to secure glass panels in contemporary shower enclosures. They assist in maintaining the frameless appearance, and provide a clean looking alternative to U-Channel. All Traditional Clamps feature solid brass construction and a variety of finishes to match our complete line of Shower Door Hinges. Appropriate mounting screws and one set of clear gaskets are included with each Clamp. Extra Cat. No. UCG77 Clear Gaskets may be ordered separately.
SPECIFICATIONS:
Materials: Solid Brass
Available Finishes: Shown at top of page.
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Fabrication Required: Stud will fit between panels with 7/16" (11 mm) gap, or you can notch the glass around the screw stud for a tighter gap.
Includes: Gaskets
NOTE: An additional set of gaskets is required for 5/16" (8 mm) glass (Cat. No. UCG77).
