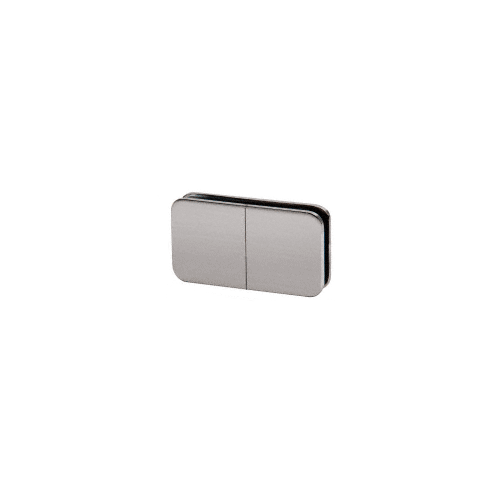

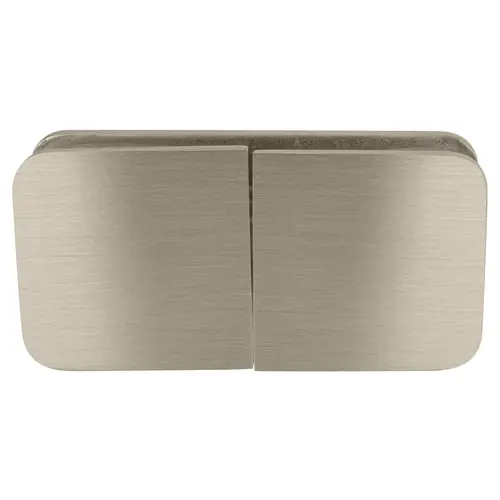

CRL GCB182BN Brushed Nickel 180 Degree Traditional Style Split Face and 'Y' Inline Glass Clamp
Item #: GCB182BN by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use Monolithic Tempered Glass
- A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
- For 5/16" to 1/2" (8 to 12 mm) Thick Glass
- Glass Fabrication Required to Accommodate Clamps
- Solid Brass
- Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
Height
1-3/4" (44.5 mm)
Width
3-1/2" (89 mm)
Finish
Brushed Nickel
Type
180 Degree W/ "Y" Inline
Mounting Type
Glass To Glass
Material
Brass
Glazing Thickness
5/16 To 1/2
Finish/Color
Brushed Nickel
Glass To Glass Angle (Degrees)
180
Mounting Style
Glass To Glass
This dual purpose CRL 180 Degree Split Face and 'Y' Inline Clamps can be used to connect glass panels inline, or as a 'Y' Clamp to fasten glass panels flush with the edge of marble or tile walls. Solid brass Clamp includes extra screw for use in 'Y' configuration.
Our solid brass Traditional Glass Clamps are designed to secure glass panels in contemporary shower enclosures. They assist in maintaining the frameless appearance, and provide a clean looking alternative to U-Channel. All Traditional Clamps feature solid brass construction and a variety of finishes to match our complete line of Shower Door Hinges. Appropriate mounting screws and one set of clear gaskets are included with each Clamp. Extra Cat. No. UCG77 Clear Gaskets may be ordered separately.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm) Each Panel
Includes: Gaskets, Screw for 'Y' Inline Clamp Use
NOTE: An additional set of gaskets is required for 5/16" (8 mm) glass (Cat. No. UCG77).
