30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use Monolithic Tempered Glass
- For 5/16" to 1/2" (8 to 12 mm) Glass
- Several Popular Finishes to Choose
- Solid Brass Clamps are Adjustable for Non-Standard Angles
- Two Models Available; Glass-to-Wall, and Glass-to-Glass
Hole Required in Glass
7/8" (22 mm)
1-15/16" (49 mm) Wide x 1-3/4" (44 mm) High
1-3/4" (44 mm)
5/16 To 1/2

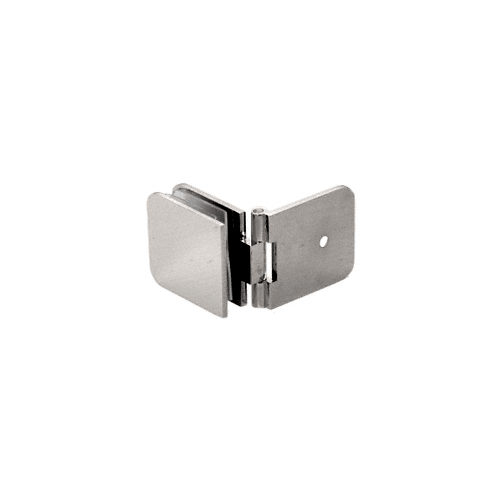

CRL Adjustable Wall Mount Clamps mount directly to the wall, ceiling or floor to secure vertical fixed glass panels at any angle. Clearance between the glass and surface is 5/32" to 3/16" (4 to 5 mm). Clear silicone can be used to provide a clean, water resistant seal.
Our Solid Brass Wall Mount and Glass-to-Glass Adjustable Glass Clamps are designed to secure glass panels in contemporary shower enclosures. They assist in maintaining the frameless appearance, and provide a clean-looking alternative when a wall is not at 90º to the fixed panel, or the glass-to-glass application is not a standard angle. This range of Glass Clamps can accommodate 5/16" to 1/2" (8 to 12 mm) glass. Custom finishes are available.
NOTE: You may contact the CRL Shower Door Technical Staff for location of hole drilled in glass, due to numerous possible angles.
Materials: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 7/8" (22 mm) Each Panel
Includes: Clear Gaskets and Mounting Screw
Extra Gaskets: Cat. No. UCG77 for use with 5/16" (8 mm) glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
