The maximum recommended door width is 14" (356 mm) for Standard Hinges and 20" (508 mm) for Wide Hinges. Maximum weight should not exceed 18 lbs. (8.2 kg) for Standard Series and 28 lbs. (12.7 kg) for Wide Series. Minimum required clearance is 3/16" (5 mm) top and bottom. One set top and bottom per pack.
Product Warning:
If the size of the glass door exceeds 14" (356 mm) wide and 20 Lbs. (9 kg) total weight. Please use Cat. No. EH324 Hinge, which is heavier duty.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

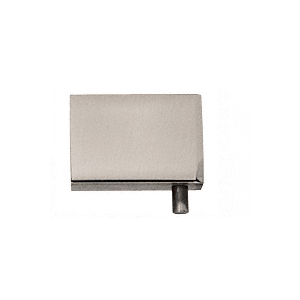

CRL EH225 Brushed Nickel Glass Door Pivot Hinges - pack of 2
Item #: EH225 by CR Laurence
44 reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Easy-to-Install
- For 1/4" to 5/16" (6 to 8 mm) Glass
- No Holes or Cut-Outs Required
Shipping Weight
8 oz (227g)
Finish
Brushed Nickel
Weight Capacity
18
Material
Brass
Width
1-9/16
Glazing Thickness
1/4 To 5/16
Maximum Door Width
14
Finish/Color
Brushed Nickel
Height
1-1/16
Product Overview
The maximum recommended door width is 14" (356 mm) for Standard Hinges and 20" (508 mm) for Wide Hinges. Maximum weight should not exceed 18 lbs. (8.2 kg) for Standard Series and 28 lbs. (12.7 kg) for Wide Series. Minimum required clearance is 3/16" (5 mm) top and bottom. One set top and bottom per pack.
Product Warning:
If the size of the glass door exceeds 14" (356 mm) wide and 20 Lbs. (9 kg) total weight. Please use Cat. No. EH324 Hinge, which is heavier duty.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
