Brushed Nickel Roman Series 90 Degree Glass-to-Glass Clamp

Roll over image to zoom in

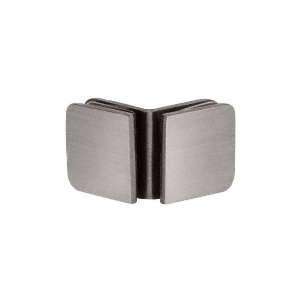

CRL R0M91BN Brushed Nickel Roman Series 90 Degree Glass-to-Glass Clamp

Item #: R0M91BN by CR Laurence

Item Discontinued!
See reviews See reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Use Monolithic Tempered Glass
  • Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
  • Solid Brass
  • A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
  • Glass Fabrication Required to Accommodate Clamps

Height

1-15/16" (49 mm)

Width Each Plate

1-15/16 in (49 mm)

Width

1-3/4" (44 mm)

Glass Thickness Range

5/16" to 1/2" (8 to 12 mm)

Size

1-3/4" (44 mm) Wide x 1-15/16" (49 mm) High)

Finish

Brushed Nickel

Type

90 Degree

Mounting Type

Glass To Glass

Glazing Thickness

5/16 To 1/2

Material

Brass

Glass To Glass Angle (Degrees)

90

Finish/Color

Brushed Nickel


CRL Roman Series 90 Degree Glass-to-Glass Clamps have two versatile applications. They can be used to connect two fixed panels of glass at 90 degree, or by utilizing the wood screw that is included, as a shelf bracket or offset wall mounting clamp. They have rounded corners for a "softer" look. The Clamp has an open back so the glass can either be mitered or overlapped. Clamps are designed for use with 5/16" or 3/8" (8 or 10 mm) thick glass. A hole is required in the glass for installation. By utilizing the wood screw that is included, the clamp can be used as a shelf bracket or offset wall mounting clamp. Custom finishes are available on request. For more information contact CRL Shower Door Technical Sales Department.
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets and Wood Screws Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm) Each Panel
NOTE: An additional set of gaskets is required
for 5/16" (8 mm) glass (Cat. No. UCG77).

.
