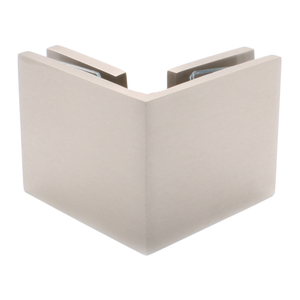

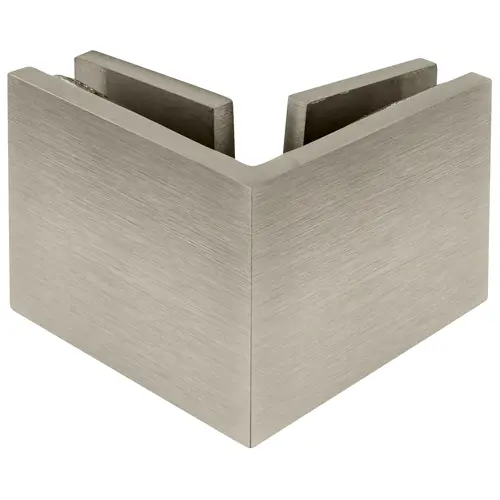

CRL  Brushed Nickel Square 90 Degree Glass-to-Glass Clamp
Qty
–
+
$29.42   /each

CRL SGC90BN Brushed Nickel Square 90 Degree Glass-to-Glass Clamp

  • Use Monolithic Tempered Glass
  • A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
  • For 3/8" to 1/2" (10 to 12 mm) Glass
  • Glass Fabrication Required to Accommodate Clamps
  • Solid Brass
  • Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
See Full Product Description

Additional options:

SALE

$29.42 /each

Qty

In Stock
Quick Shipping

Usually ships in 1 business day*

Additional options:

SALE
+
In Stock Quick Shipping

Usually ships in 1 business day*

Have a Question?

Chat with our Expert


Description

  • Use Monolithic Tempered Glass
  • A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
  • For 3/8" to 1/2" (10 to 12 mm) Glass
  • Glass Fabrication Required to Accommodate Clamps
  • Solid Brass
  • Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures

  • Product Description
  • Technical Details 9
  • Product Reviews 1
  • Product Q&A 4
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Each Leg Width

2-1/2 in (64 mm)

Leg Height

2 in (51 mm)

Minimum Order

1 Each

Height

2" (51 mm)

Width

2-1/2" (63.5 mm)

Each Leg Size

2-1/2" (64 mm) Wide x 2" (51 mm) High

Size

2-1/2" (64 mm) Wide x 2" (51 mm) High

Hole Required in Glass

5/16" to 1/2" (8 to 12 mm)

Finish

Brushed Nickel

Type

90 Degree

  • Use Monolithic Tempered Glass
  • A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
  • For 3/8" to 1/2" (10 to 12 mm) Glass
  • Glass Fabrication Required to Accommodate Clamps
  • Solid Brass
  • Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
CRL Square 90 Degree Glass-to-Glass Clamps have sharp squared off corners and a closed back. Used to connect two fixed glass panels meeting at 90 degrees. Panels may be overlapped or mitered at the corner. Drawings and templates for all Clamps are available.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 Require 3/4" (19 mm) Holes; SGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Mounting Screws (for Wall Clamps) and Gaskets
