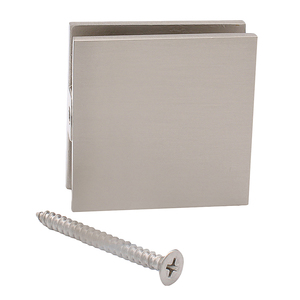

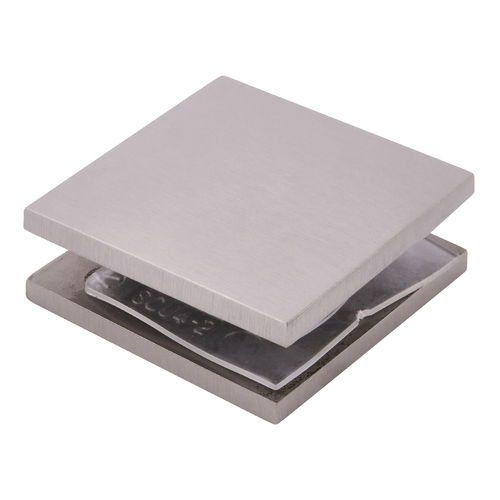

CRL SCU4BN Brushed Nickel Square Style Hole-in-Glass Fixed Panel U-Clamp
Item #: SCU4BN by CR Laurence
In Stock $15.10 /each
Buying in bulk

Roll over image to zoom in
CRL SCU4BN Brushed Nickel Square Style Hole-in-Glass Fixed Panel U-Clamp
Item #: SCU4BN by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use monolithic tempered glass
- Fabrication: 5/8" or 3/4" (16 or 19 mm) hole in panel
- Glass fabrication required to accommodate clamps
- Used to secure fixed panels of glass for frameless shower enclosures
Height
2" (51 mm)
Width
2" (51 mm)
Finish
Brushed Nickel
Type
Hole-in-Glass
Material
Solid Brass
Pack Size
1
CRL Square Wall Mount Clamp (Hole-in-Glass Style) mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. The clearance between the glass and wall is 3/16" (5 mm). Clear silicone can be used to provide a clean, water-tight seal.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 Requires Notch; SCU4, SGC037, and SGC039 Require 3/4" (19 mm) Holes
Includes: Mounting Screws and Gaskets
