CRL's 12 ft (3.66 m) Low Profile Rolling Track Assemblies are packaged to contain the Extrusions, Wheels, and Guides you will need to complete your custom project. Designed for 1/4" (6 mm) tempered glass doors, these Track Assemblies have long been a popular choice for display cases, trophy cases, china cabinets, as well as cases for any retail store application. Choose from either Nylon or Steel Ball Bearing Wheel Assemblies for years of smooth and reliable service. The versatility of this track system allows for design flexibility. Optional locking hardware is available. For dry glazing with 1/4" (6 mm) glass use Cat. No. GC728C Vinyl (sold separately).
NOTE: Maximum suggested panel size is 36" W x 48" H (914 mm x 1.22 m).

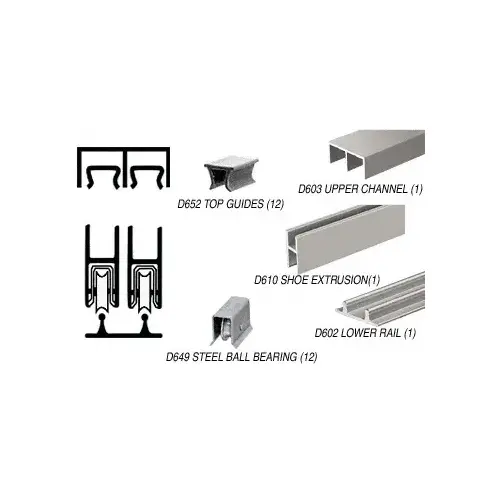

Components for D2203BNBB
D602 (x1)
D603 (x1)
D649 (x12)
D610 (x1)
D652 (x12)
D9650 (x1)
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
If you need a very tight fit, you should figure your own dimensions. The dimensions shown are just guideline dimensions that are satisfactory to most installers.
D2203 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-1/8"
D2204 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-1/8"
D2300 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2301 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2303 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2305 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2306 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-5/8"
D2307 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-5/8"
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL D2203BNBB Brushed Nickel Track Assembly D603 Upper and D602 Lower Track With Steel Ball-Bearing Wheels 144" Stock Length
Item #: D2203BNBB by CR Laurence
11 reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 12' (3.66 m) Length
- An Excellent Choice for Any Project
- Choose From Two Styles of Upper Channel
- D2203 Series
- With D649 Ball Bearing Wheels
Length
12' (3.66 m)
Shipping Weight
4 lb (1.81kg)
Finish
Brushed Nickel
Wheels Type
Steel Ball-Bearing
Type
D603 Upper and D602 Lower Track W/Steel Ball-Bearing Wheels
Material
Aluminum
Wheel Type
Ball Bearing
Glazing Thickness
1/4
Finish/Color
Brushed Nickel
Anti-Lift Feature
No
Components
D603BN,D652,D610BN,D649,D602BN
Product Overview
CRL's 12 ft (3.66 m) Low Profile Rolling Track Assemblies are packaged to contain the Extrusions, Wheels, and Guides you will need to complete your custom project. Designed for 1/4" (6 mm) tempered glass doors, these Track Assemblies have long been a popular choice for display cases, trophy cases, china cabinets, as well as cases for any retail store application. Choose from either Nylon or Steel Ball Bearing Wheel Assemblies for years of smooth and reliable service. The versatility of this track system allows for design flexibility. Optional locking hardware is available. For dry glazing with 1/4" (6 mm) glass use Cat. No. GC728C Vinyl (sold separately).
NOTE: Maximum suggested panel size is 36" W x 48" H (914 mm x 1.22 m).
Components for D2203BNBB
D602 (x1)
D603 (x1)
D649 (x12)
D610 (x1)
D652 (x12)
D9650 (x1)
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
If you need a very tight fit, you should figure your own dimensions. The dimensions shown are just guideline dimensions that are satisfactory to most installers.
D2203 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-1/8"
D2204 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-1/8"
D2300 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2301 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2303 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2305 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2306 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-5/8"
D2307 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-5/8"
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
