CRL Trianon Hinges can be used to support 1/4" to 5/16" (6 to 8 mm) thick safety glass in swinging door installations. They feature radiused corners and beveled edges in seven decorator finishes. Trianon Hinges are constructed of solid brass with a self-centering mechanism for door alignment when within 15 degree of the center. They contain a Reversible Pivot Pin for optional 5 degree tighter door closure. Five distinct models include two Wall Mount styles, along with three Glass-to-Glass styles.
STANDARD REVERSIBLE PIVOT PIN: Each Trianon Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree, which allows 5 degree tighter closure into shower area. The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 92 lbs. (42 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 1/4" to 5/16" (6 to 8 mm) Tempered Safety Glass
Special Features: Contains a Reversible 5 degree Pivot Pin. When activated, it allows 5 degree tighter door closure.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15v of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

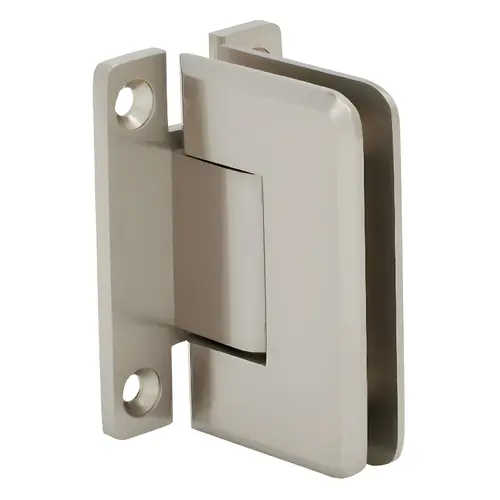

CRL Brushed Nickel Trianon 037 Series Wall Mount 'H' Back Plate Hinge
Item #: TR1037BN by CR Laurence
Brand: CRL
See reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Wall Mount Full Back Plate
- Self-Centering with Reversible 5 Degree Pivot Pin
- Use Monolithic Tempered Glass
Shipping Weight
2 lb (907g)
Width
1-13/16
Height
2-15/16
Finish
Brushed Nickel
Back Plate
'H'
Glazing Thickness
1/4 To 5/16
Edge Profile
Beveled
Finish/Color
Brushed Nickel
Series
Trianon
Self-Centering
Yes
Maximum Door Width - 2 Hinges (Inches)
28"
Maximum Door Width - 3 Hinges (Inches)
32"
Maximum Door Weight - 3 Hinges (Pounds)
92 Lbs.
Maximum Door Weight - 2 Hinges (Pounds)
62 Lbs.
Mounting Type
Wall Mount
Material
Brass
Maximum Door Weight - 2 Hinges
62 lbs. (28.1 kg)
Maximum Door Weight - 3 Hinges
92 lbs. (41.7 kg)
Product Overview
CRL Trianon Hinges can be used to support 1/4" to 5/16" (6 to 8 mm) thick safety glass in swinging door installations. They feature radiused corners and beveled edges in seven decorator finishes. Trianon Hinges are constructed of solid brass with a self-centering mechanism for door alignment when within 15 degree of the center. They contain a Reversible Pivot Pin for optional 5 degree tighter door closure. Five distinct models include two Wall Mount styles, along with three Glass-to-Glass styles.
STANDARD REVERSIBLE PIVOT PIN: Each Trianon Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree, which allows 5 degree tighter closure into shower area. The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 92 lbs. (42 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 1/4" to 5/16" (6 to 8 mm) Tempered Safety Glass
Special Features: Contains a Reversible 5 degree Pivot Pin. When activated, it allows 5 degree tighter door closure.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15v of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
