CRL Z-Series Clamps are available in your choice of round or square shapes, and come in either economical zinc, or durable stainless steel construction. The Z110 Series Glass Clamps are designed to accommodate a glass thickness of 3/8" (10 mm).
The radius base design can be applied on 2" (51 mm) tubing. By drilling a notch in the glass, the pin included with each clamp can be used to eliminate glass slippage. Popular applications are partitions, mezzanines, wind breaks, railings and other commercial uses. CRL Cat. No.'s ZB0LT14 (Bolt) and RN1420 (Rivet-Nut) are used for securing Z-CLAMP to tubing. Appropriate gaskets are included with each clamp.
Glass Fabrication: 1/2" (12 mm) notch is required if using provided steel pin.
Replacement Hardware: CRL P612 for Replacement Screws
Product Warning:
For interior and exterior applications CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL Z110BN Brushed Nickel Z-Series Large Round Clamp for 3/8" Glass
Item #: Z110BN by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For 3/8" (10 mm) Glass
- Use Monolithic Tempered Glass
- An Excellent Choice for Partitions, Mezzanines, Wind Breaks, Railings and Much More
- May Be Used on Wood or Metal Radius
- May Be Used on Wood or Metal Radius or Flat Surfaces
- Custom Painted Finishes Available Upon Request

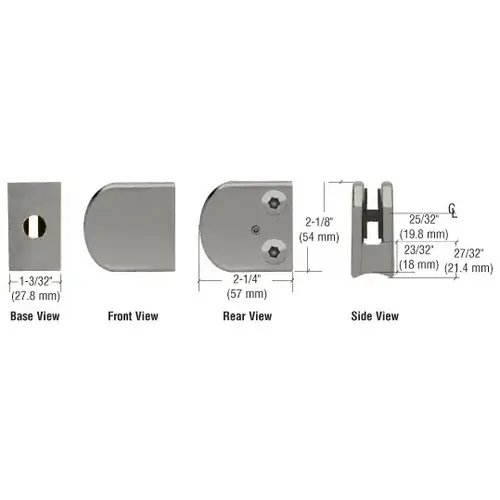

Height
2-1/4
Shipping Weight
1 lb (454g)
Width
2-1/8
Glass Thickness
3/8" (10 mm)
Finish
Brushed Nickel
Type
Fits 3/8" Glass
Material
Zinc
Depth
1-3/32
Glazing Thickness
3/8
Profile
Round
Finish/Color
Brushed Nickel
Product Overview
CRL Z-Series Clamps are available in your choice of round or square shapes, and come in either economical zinc, or durable stainless steel construction. The Z110 Series Glass Clamps are designed to accommodate a glass thickness of 3/8" (10 mm).
The radius base design can be applied on 2" (51 mm) tubing. By drilling a notch in the glass, the pin included with each clamp can be used to eliminate glass slippage. Popular applications are partitions, mezzanines, wind breaks, railings and other commercial uses. CRL Cat. No.'s ZB0LT14 (Bolt) and RN1420 (Rivet-Nut) are used for securing Z-CLAMP to tubing. Appropriate gaskets are included with each clamp.
Glass Fabrication: 1/2" (12 mm) notch is required if using provided steel pin.
Replacement Hardware: CRL P612 for Replacement Screws
Product Warning:
For interior and exterior applications CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
