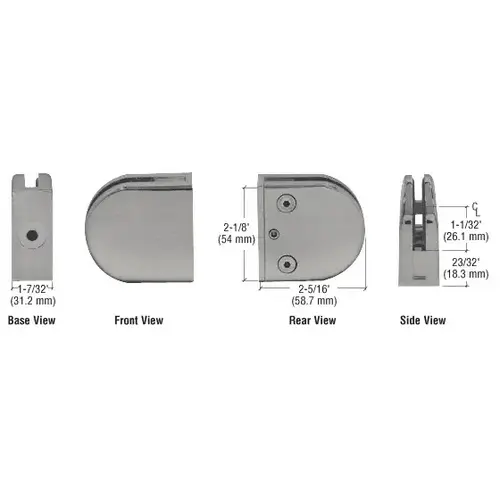

Brushed Nickel Z-Series Round Type Flat Base Zinc Clamp for 1/2" Glass Brushed Nickel Z-Series Round Type Flat Base Zinc Clamp for 1/2" Glass
Brushed Nickel Z-Series Round Type Flat Base Zinc Clamp for 1/2" Glass+1
Brushed Nickel Z-Series Round Type Flat Base Zinc Clamp for 1/2" Glass
Brushed Nickel Z-Series Round Type Flat Base Zinc Clamp for 1/2" Glass Brushed Nickel Z-Series Round Type Flat Base Zinc Clamp for 1/2" Glass
Brushed Nickel Z-Series Round Type Flat Base Zinc Clamp for 1/2" Glass+1

Brushed Nickel Z-Series Round Type Flat Base Zinc Clamp for 1/2" Glass

  • For 1/2" (12 mm) Glass
  • Replacement Gaskets are Available by Ordering Cat. No. Z12RG
  • For Use on Mezzanines, Partitions, Railings and Windbreaks
  • Use Monolithic Tempered Glass
  • Steel Pin Available for Additional Glass Support
  • Custom Painted Finishes Available Upon Request
See Full Product Description
SALE

$15.33 /each

Qty

In stock
Ships same day*

SALE

Qty

In stock Ships same day*

SALE
Have a Question?

Chat with our Expert


Similar Products


Description

  • For 1/2" (12 mm) Glass
  • Replacement Gaskets are Available by Ordering Cat. No. Z12RG
  • For Use on Mezzanines, Partitions, Railings and Windbreaks
  • Use Monolithic Tempered Glass
  • Steel Pin Available for Additional Glass Support
  • Custom Painted Finishes Available Upon Request

  • Product Description
  • Technical Details 16
  • Product Reviews
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Color

Brushed Nickel

Height

2-5/16" (58.7 mm)

Minimum Order

1 Each

Shipping Weight

8 oz (227g)

Width

2-1/8" (54 mm)

  • For 1/2" (12 mm) Glass
  • Replacement Gaskets are Available by Ordering Cat. No. Z12RG
  • For Use on Mezzanines, Partitions, Railings and Windbreaks
  • Use Monolithic Tempered Glass
  • Steel Pin Available for Additional Glass Support
  • Custom Painted Finishes Available Upon Request
Our CRL Z-Series Round Type Radius Base Glass Clamps are designed to be used on glass thickness of 1/4" up to 1/2" (6 to 12 mm), and are available in either zinc or stainless steel. The clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.

For securing the Z-Clamp to thin wall tubing (less than 1/8”), use CRL’s ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For installation, drill a 17/32” (13.5 mm) hole, then install the Rivet-Nut using 34604 Heavy-Duty Thread Insert tool and 34618 5/16” Mandrel and Nosepiece.

NOTE: 1/2" (12 mm) hole is required if using the steel pin (included with the clamp) for additional glass support.

SPECIFICATIONS:
Glass Thicknesses: Models for 1/4" to 1/2" (6 to 12 mm)
Base Design: Flat
For Use With:Square Tubing or Other Flat Surfaces.
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.
Glass Fabrication: For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) Thick Glass: 1/2" (12 mm) diameter hole required if using provided steel pin for glass support. For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.
Includes: Rubber Gaskets and Steel Pin (for optional use) with Grommet Important Notes: For interior CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.
