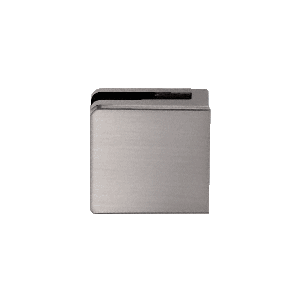

CRL Z806BN Brushed Nickel Z-Series Square Type Flat Base Zinc Clamp for 1/4" and 5/16" Glass
Item #: Z806BN by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- For 1/4" and 5/16" (6 and 8 mm) Glass
- Replacement Gaskets are Available by Ordering Cat. No. Z14SG
- For Use on Mezzanines, Partitions, Railings and Windbreaks
- Use Monolithic Tempered Glass
- Steel Pin Available for Additional Glass Support
- Tested and Engineered to Meet and Exceed Code Standards (Engineering Reports)
- Tested and Engineered to Meet and Exceed Code Standards
- Custom Painted Finishes Available Upon Request
8 oz (227g)
Flat Base & Fits 1/4" and 5/16" Glass
1/4 To 5/16
This CRL Z-Series Square Type Flat Base Glass Clamp is designed to be used on glass thickness of 1/4" to 5/16" (6 to 8 mm). Constructed from either zinc or stainless steel, the clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.
For securing the Z-Clamp to thin wall tubing (less than 1/8”), use CRL’s ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For installation, drill a 17/32” (13.5 mm) hole, then install the Rivet-Nut using 34604 Heavy-Duty Thread Insert tool and 34618 5/16” Mandrel and Nosepiece.
NOTE: 1/2" (12 mm) hole is required if using the steel pin (included with the clamp) for additional glass support.
Glass Thicknesses: For 1/4" and 5/16" (6 and 8 mm).
Base Design: Flat
For Use With: Square Tubing or Other Flat Surfaces
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.
Includes: Rubber Gaskets and Steel Pin (for Optional Use) with Grommet.
Replacement Hardware : CRL P612 for Replacement Screws
For interior CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.
