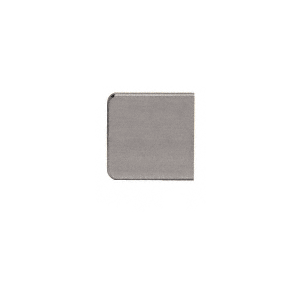

CRL Z130BN Brushed Nickel Z-Series Zinc Small Square Glass Clamp for 1/4" and 5/16" Glass
Item #: Z130BN by CR Laurence
1 1
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- For 1/4" to 5/16" (6 to 8 mm) Glass
- An Excellent Choice for Partitions, Mezzanines, Wind Breaks, Railings and Much More
- May Be Used on Wood or Metal Radius
- May Be Used on Wood or Metal Radius or Flat Surfaces
- Use Monolithic Tempered Glass
- Custom Painted Finishes Available Upon Request
Height
1-3/4
Shipping Weight
1 lb (454g)
Width
1-3/4
Glass Thickness
1/4" to 5/16" (6 to 8 mm)
Finish
Brushed Nickel
Type
Small
Depth
29/32
Glazing Thickness
1/4 To 5/16
Profile
Square
Finish/Color
Brushed Nickel
CRL Z-Series Clamps are available in your choice of round or square shapes, and come in either economical zinc construction, or durable stainless steel construction. CRL's Z130 series glass clamps will accommodate glass thicknesses from 1/4" to 5/16" (6 to 8 mm). The radius base is designed to apply on 2" (51 mm) tubing. By drilling a notch in the glass, the pin included with each clamp can be used to eliminate glass slippage. Popular applications are partitions, mezzanines, wind breaks, railings and other commercial uses. CRL Cat. No. ZB0LT (Bolt) and Cat. No. ZRNUT (Rivet-Nut) are used for securing z-clamp to tubing. Appropriate gaskets are included with each clamp. A variety of finishes are offered to match most any commercial decor.
Glass Fabrication: 1/2" (12 mm) notch is required if using provided steel pin.
Replacement Hardware : CRL P612 for Replacement Screws
Product Warning:
For interior and exterior applications CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.
.
