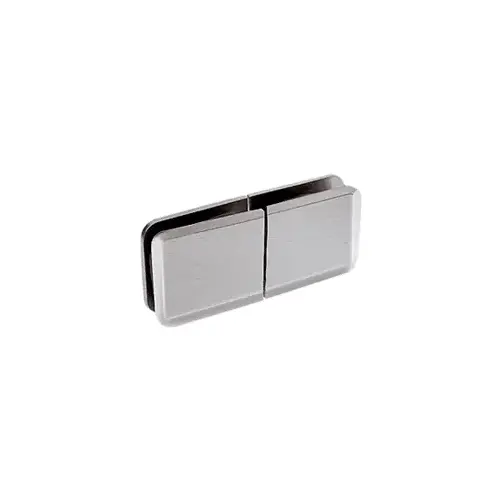

CRL BGC188BSC Brushed Satin Chrome Square Beveled 180 Glass-to-Glass Movable Transom Clamp
Item #: BGC188BSC by CR Laurence
See reviews
In Stock $16.08 /each
SAVE UP TO 1.61
Buying in bulk
Roll over image to zoom in
SALE
CRL BGC188BSC Brushed Satin Chrome Square Beveled 180 Glass-to-Glass Movable Transom Clamp
Item #: BGC188BSC by CR Laurence
See reviews See reviews
QTY
–
+
+ Add to Wishlist
Buy In Bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use Monolithic Tempered Glass
- For 3/8" to 1/2" (10 to 12 mm) Thick Glass
- Glass Transom Swivels to Allow Release of Steam
- Solid Brass Material
- Wall Mount, and 180º Models Available
Leg Height
2 in (51 mm)
Minimum Order
1 Each
Overall Width
4-1/16 in (103 mm)
Size
4-1/16" (103 mm) Wide x 2" (51 mm) High
Hole Required in Glass
5/16" to 1/2" (8 to 12 mm)
Finish
Brushed Satin Chrome
CRL Beveled 180º Glass-to-Glass Movable Transom Clamps allow the rotation of a movable transom off of an inline fixed glass panel. This style Clamp can also be used in combination with our Cat No. BGC186 Wall Mount Movable Transom Clamp. Clamp must be centered on the transom to achieve balanced movement.
Replacement parts are Cat. Nos. 90295A120 (Nylon
Washer), 211039 (10-32 x 3/4" Flat Head Phillips Screw), 193004 (10-32 Nylon Lock Nut), and BGCU1G (Gasket).
NOTE: Maximum transom size is 16" x 30" (406 x 762 mm) wide. Larger transoms require the use of pivot hinges used as transom clamps. Call for details.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (3 to 12 mm)
Glass Fabrication Required: BGC180, BGC135, BGC90, and BGC186 Require 3/4" (19 mm) Holes; BGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Gaskets
Replacement parts are Cat. Nos. 90295A120 (Nylon
Washer), 211039 (10-32 x 3/4" Flat Head Phillips Screw), 193004 (10-32 Nylon Lock Nut), and BGCU1G (Gasket).
NOTE: Maximum transom size is 16" x 30" (406 x 762 mm) wide. Larger transoms require the use of pivot hinges used as transom clamps. Call for details.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (3 to 12 mm)
Glass Fabrication Required: BGC180, BGC135, BGC90, and BGC186 Require 3/4" (19 mm) Holes; BGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Gaskets
