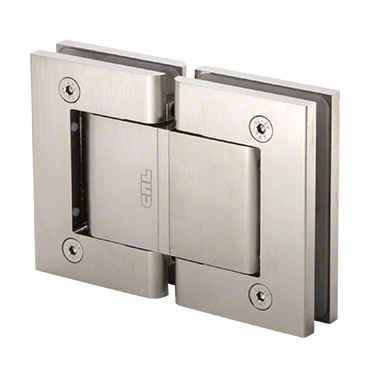

Brushed Satin Nickel Vernon 180 degree Glass-to-Glass Hinge

Roll over image to zoom in

CRL 31M8015SN Brushed Satin Nickel Vernon 180 degree Glass-to-Glass Hinge

Item #: 31M8015SN by CR Laurence

See reviews See reviews

$487.98 /each

SAVE UP TO 48.80

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • For Self-Closing Glass Doors from 5/16" to 9/16" (8 to 13.52 mm) Thick
  • Aluminum Body in Your Choice of Several Finishes
  • Hold Open or No Hold Open Models Available
  • Adjustable Closing Speed
  • A Great Alternative to Floor Closers and Patch Fittings

Application

Interior

Closing Type

Hold Open

Color

Satin Nickel

Finish

Brushed Satin Nickel

Material

Aluminum

Max Weight 2 Hinges

176

Glazing Thickness

5/16 To 9/16

Maximum Door Width

39

Finish/Color

Brushed Satin Nickel

Maximum Panel Weight (Pounds)

100


This CRL 180º Glass-to-Glass Hinge swings in and out a full 90º, with stops at 0º, +90º, and –90º. Closing speed can be adjusted. For doors up to 39" (1 m) wide. Maximum weight per two hinges is 176 lbs. (80 kg).
The Vernon Hinge represents the evolution and the synthesis between automatic mechanical hinges and hydraulic door closers. Designed for use on interior doors (not for Shower Doors), Vernon allows you to design a self-closing door without the need of a floor-mounted or overhead closing device. This gives you the advantage of being able to install an 'all-glass' door in an existing opening without the need for extensive retrofitting of hardware into the floor or overhead.
Properly mounted, two Vernon Hinges will support a 5/16" to 9/16" (8 to 13.52 mm) thick glass door up to 39" (1 m) in width and weighing up to 176 lbs. (80 kg). (Do not use more than two hinges.) A control valve lets you adjust the hinge to the desired closing speed. The Vernon Hinge has an internal stop on the valve adjustment screw stopping you from going too far, so you can open completely (4-5 turns) until you reach the speed required. The Vernon works properly between 5° to 104° degrees without problems. The viscosity of the oil could change, hence you may need to adjust the speed to compensate. And Vernon is ambidextrous, with positive stops at 0º and 90º, giving you even more design freedom.
The Vernon Hinge features an aluminum body in distinct configurations for Wall Mount and Glass-to-Glass applications. Vernon has been subject to strict testing (over 1 million cycles), assuring long lasting service.
SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90º Inwards and Outwards (Except 31M8060 Model, Which Only Swings One Way)
Closing Type: Automatic Closing from 0º to 80º
Special Feature: Holds Open at 90º; Adjustable Closing Speed. No Hold Open Models Available (Except 31M8060 Model).
Cut-Out Required
Includes: Snap-In Molded Gaskets for 5/16" to 9/16" (8 to 13.52 mm) Glass; Hex Screws
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 176 lbs. (80 kg)
NOTE: Do not use more than two hinges on one door.
Product Warning:
Do not use more than two hinges on one door. If hinges are to be used for other than their intended purpose, approval must be obtained from the DK Hardware Sales Department. Use only the template included with our hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

.
