Interior slip-fit Vertical Corners for 1/2" (12 mm) or 5/8" (16 mm) thick glass allow for hairline joint assemblies with straight lengths of CRL Cap Rail. Use of our Cat. No. 32629 Metal Contact Cement is required to achieve a secure and permanent bond. Two Connector Sleeves are required for use with each corner.
Each Vertical Corner is fabricated, finished, and individually packed. All of our stainless and brass corners are fabricated from CRL Premium Cap Rail, and are welded and finished to match. Standard stainless alloy is 304. Stainless alloy 316 is available on special order. For brass, alloy 260 is standard.
Please contact DK Hardware Sales for more information or a quote.
NOTE: With the exception of the GR15 Series Cap Rail Corners, when used with 1/2" (12 mm) glass, our GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When using GR15 Series Cap Rail Corners or 5/8" (16 mm) glass, use 95CBL Silicone and shims only to secure the glass.
Product Warning:
*This dimension is used to calculate the glass size. Add the clearance you desire or add an additional 1/8" (3.2 mm) if using Cap Rail Vinyl.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

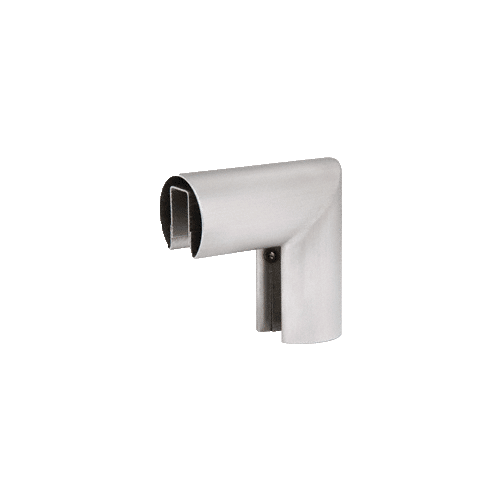

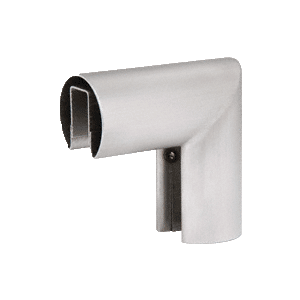

CRL GR15VBS Brushed Stainless 1-1/2" 90 Degree Vertical Corner for 1/2" or 5/8" Glass Cap Railing
Item #: GR15VBS by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Four Architectural Finishes
- Ready-to-Install
- Requires Two Connector Sleeves (Not Included)
*D
*5/16 in (7.9 mm)
Grade
304

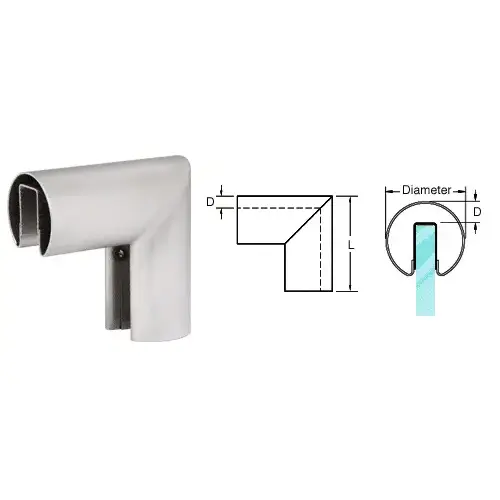

Dimensions
L=3-3/4" (95.3 mm) D=5/16" (7.9 mm)
Length
3-3/4 in (95.3 mm)
Finish
Brushed Stainless
Diameter
1-1/2"
Material
Stainless Steel
Finish/Color
Brushed Stainless Steel
Angle (Degrees)
90
Angle
90
Product Overview
Interior slip-fit Vertical Corners for 1/2" (12 mm) or 5/8" (16 mm) thick glass allow for hairline joint assemblies with straight lengths of CRL Cap Rail. Use of our Cat. No. 32629 Metal Contact Cement is required to achieve a secure and permanent bond. Two Connector Sleeves are required for use with each corner.
Each Vertical Corner is fabricated, finished, and individually packed. All of our stainless and brass corners are fabricated from CRL Premium Cap Rail, and are welded and finished to match. Standard stainless alloy is 304. Stainless alloy 316 is available on special order. For brass, alloy 260 is standard.
Please contact DK Hardware Sales for more information or a quote.
NOTE: With the exception of the GR15 Series Cap Rail Corners, when used with 1/2" (12 mm) glass, our GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When using GR15 Series Cap Rail Corners or 5/8" (16 mm) glass, use 95CBL Silicone and shims only to secure the glass.
Product Warning:
*This dimension is used to calculate the glass size. Add the clearance you desire or add an additional 1/8" (3.2 mm) if using Cap Rail Vinyl.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
