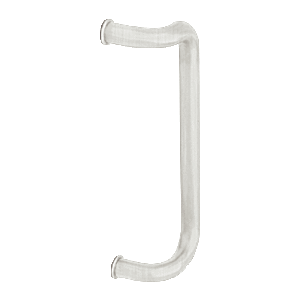

CRL CD10BS Brushed Stainless 10" Single Offset Door Pull
Item #: CD10BS by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- 1" (25 mm) Diameter Stainless Steel or Brass Tubing
- Ready-to-Mount
Center-to-Center
10" (254 mm)
Clearance
2-1/4 in (57 mm)
Projection
2-3/4
Mounting Holes Center-to-Center
10" (254 mm)
Diameter
1"
Finish
Brushed Stainless
Overall Length
10
Hole Diameter
5/8
Material
Stainless Steel
Center to Center
10
Finish/Color
Brushed Stainless Steel
Mounting Type
Back-To-Back
Mounting Center To Center (Inches)
10
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Center To Center
10 in. (254 mm)
Our CRL Tubular Offset Single-Sided Pull Handles are constructed of 1" (25 mm) diameter stainless steel or brass tubing. Choose from five standard architectural finishes to complement any décor.

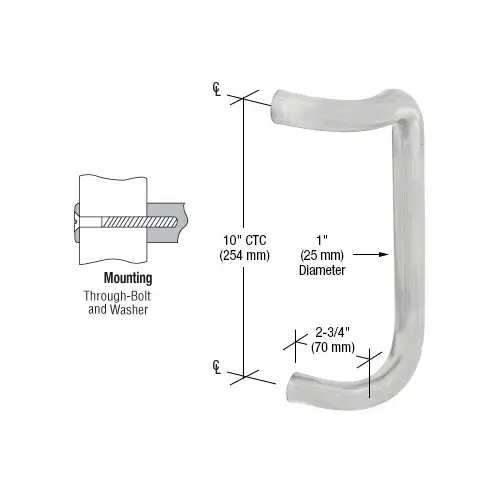

DIMENSIONS: 10" (254 mm) Center-to-Center Mounting Holes; 2-3/4" (70 mm) Projection.
SPECIFICATIONS: Material: 1" (25 mm) Diameter Stainless Steel or Brass Tubing.
Product Warning:
These handles have 1/4"-20 thread. They cannot be used with F40SK, F40WK, F41SK or F41WK sets.
.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
